3.
Check spark plug condition and electrode gap.
A.
Specification : Electrode gab 0.0394 ~ 0.0433 in (1.0 ~ 1.1mm), Tightening torque of the spark plug : 2.0 ~ 3.0 Kgf.m
If engine stalls intermittently, Perform trouble shooting by approaching classified system. Symptom of the Engine stalling by inaccurate ignition system is similar to engine stalling by cutting power supply. Because of intermittent symptom , Perform trouble shooting by checking symptoms. The purpose of the Inspection is to check spark plug and cable.
IG "OFF"

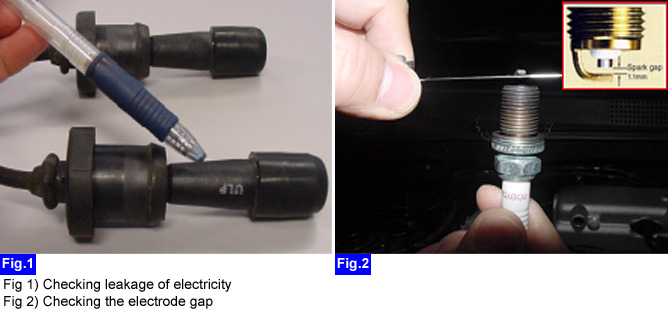

Check leakage of electricity after removing spark plug cables.

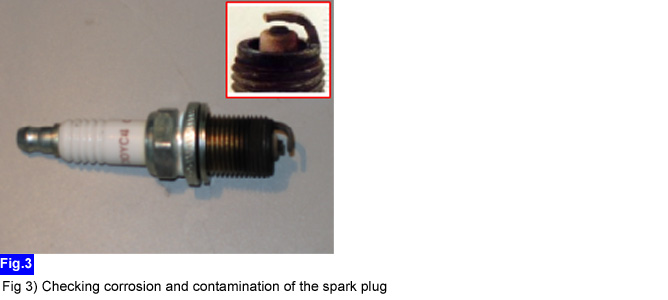

Check spark plug condition and electrode gap.
Specification : Electrode gab 0.0394 ~ 0.0433 in (1.0 ~ 1.1mm), Tightening torque of the spark plug : 2.0 ~ 3.0 Kgf.m
Are spark plug and cable normal?
YES
Spark plug and cable are OK.
NO
Replace spark plug and cable.
