Diagnostic Procedure
ECM ground Inspection
1.

IG "ON"

2.

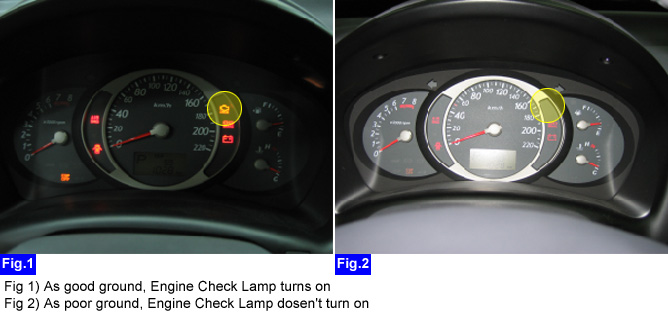

Check MIL on the cluster.

3.

Is MIL "ON"?

YES

Go to "CKP & CMP power circuit Inspection" procedure.

NO

Check ECM chassis ground (G24)
