3.

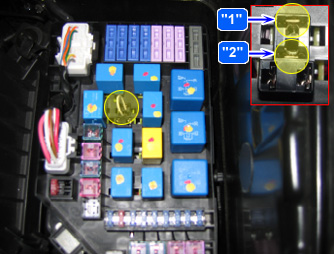

Connect "1" and "2" terminal of the fuel pump relay harness connector(E/R fuse & relay box side) directly using jump wire.
After providing battery power to fuel pump directly after removing the fuel pump relay. If fuel pump is operated directly go to "fuel pump is operated directly inspection" procedure. If fuel pump is not operated directly go to "fuel pump is not operated directly Inspection" procedure.
Disconnect Fuel Pump Relay.
IG "ON"
Connect "1" and "2" terminal of the fuel pump relay harness connector(E/R fuse & relay box side) directly using jump wire.
Is fuel pump operated directly?
YES
Go to "Fuel pump is operated directly Inspection" procedure.
NO
Go to "Fuel pump is not operated directly Inspection" procedure.
