Start the engine and check the operating time of the sunroof (A).
Operating time: Approx. 5 secs.
Start the engine and check the operating time of the sunroof (A).
Operating time: Approx. 5 secs.
Check for abnormal noise or bending during operation.
With the sunroof fully closed, check for water leakage.
The roof panel (A) should be even with the glass (B) weatherstrip (C), to within the standard value "E" all the way around. If not, make the following adjustment.
Standard value "E"
Front edge: 0 ~ 1.4mm
Rear edge: 1.0 ~ 1.4mm
If the position is not as specified, lightly loosen the glass adjusting screw (A) to adjust the glass height and tighten it.
Tightening torque:
2 ~ 4Nm (20 ~ 40kgf·cm, 1.5 ~ 2.9 lbf·ft)
Check for overlap between the sunroof weatherstrip (A) and the roof panel (B).
Standard value: 1.1mm
Check that the glass has been installed.
Finished height adjustment.
Push the up switch. (Keeping on pushing the switch)

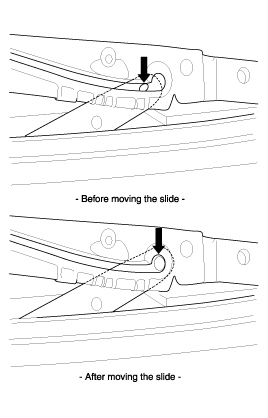

The slide moved 5mm forward after 15 seconds.
After moving the slide 5mm forward, turn OFF the switch and push the UP switch (Keeping on pushing the switch with continuous operation)
If the operation above is normal condition, the sunroof once and closes.
When the sunroof is closed completely, turn OFF the UP switch initialize the motor completely.
First operation the vehicle after manufacture it.
Initial value is erased or damaged because of short power electric discharge during operation
After altering into manual handle.
Use the sunroof emergency handle to close and open the sunroof manually for the following case only:
To close the sunroof before driving a vehicle in a rainy day or on the highway if the sunroof cannot be closed due to failure of the sunroof motor or controller.
Operating method
Remove the overhead console.
Push the emergency handle up into the hexagonal drive (A) of the sunroof motor. You must push hard enough to disengage the motor clutch; otherwise the emergency handle will slip due to uncompletely fit in the motor.
Carefully turn the emergency handle clockwise to close the sunroof.
After closing the sunroof, wiggle the handle back and forth as you remove the tool from the motor, to ensure the motor clutch reengages.
A 5mm hex socket may be used in place of the emergency handle, with a "Speeder" type handle.
Do not use power tools to operate the sunroof.
Damage to the components may occur.
Put on gloves to protect your hands.
Close the glass fully and slide the sunshade all the way back.
Remove both decoration covers (A).
Remove the glass (A) by lifting it up.
Do not damage the roof panel.
Installation is the reverse of removal, and adjust the glass height alignment. Check for water leaks.
Do not use high-pressure water.
Remove the over head console (See page BD- 71).
Disconnect the motor connector (A), remove the screws and then remove the motor (B).
Installation is the reverse of removal.
Open the glass fully.
Disconnect the deflector link (A) from the frame (B), and then remove the deflector (C).
Installation is the reverse of removal.
Remove the follows parts.
Front and rear door scuff trim (See page BD- 69).
Front, center and rear pillar trim (See page BD- 69).
Headlining (See page BD- 71).
Sunroof glass (See page BD- 49).
Disconnect the drain tubes (A).
After loosening the mounting bolts and nuts, remove the sunroof assembly (B).
Take care not to scratch the interior trims and other parts.
Installation is the revers of removal.
Remove the sunroof assembly (See page BD- 52).
Remove the drip link (A) and sunshade stopper (B).
Remove the sunshade (C) and drip rail (D).
Installation is the reverse of removal.
Remove the sunroof assembly (See page BD- 52).
Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide (B) to rear.
Remove the guide (A) and slide (B).
Installation is the reverse of removal.
Make sure to align the slide with the center of "A" and "B".
Make sure to mitialize the motor.
