DTC No. | DESCRIPTION | 4WD MIL |

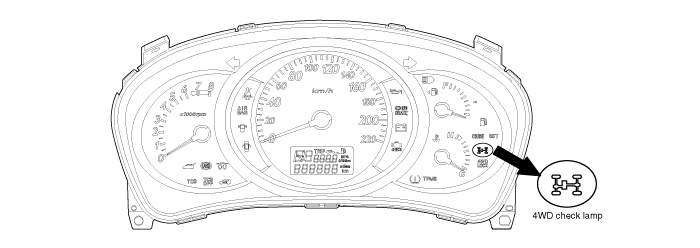

P1716 | STEERING WHEEL ANGLE SENSOR SIGNAL(CAN ERROR) | Whenever the DTCs relevant to 4WD ECM are set, 4WD MIL(*) will blink. |
P1717 | STEERING WHEEL ANGLE SENSOR 1-INPUT SIGNAL | |
P1718 | STEERING WHEEL ANGLE SENSOR 2-INPUT SIGNAL | |
P1719 | STEERING WHEEL ANGLE SENSOR C-INPUT SIGNAL | |
P1726 | ACCELERATION PEDAL POSITION SIGNAL | |
P1728 | EMC OPEN/SHORTED to BATTERY | |
P1729 | EMC SHORTED to GROUND | |
P1738 | 4WD ECU INVALID PART NUMBER | |
P1750 | WHEEL SPEED SENSOR SIGNAL(FL) | |
P1751 | WHEEL SPEED SENSOR SIGNAL(FR) | |
P1752 | WHEEL SPEED SENSOR SIGNAL(RL) | |
P1753 | WHEEL SPEED SENSOR SIGNAL(RR) | |
P1764 | ECU-ITM CAN ERROR | |
P1765 | TCS-ITM CAN ERROR | |
P1766 | CAN COMMUNICATIOM BUS OFF | |
P1767 | ABS ACTIVE SIGNAL (CAN ERROR) |

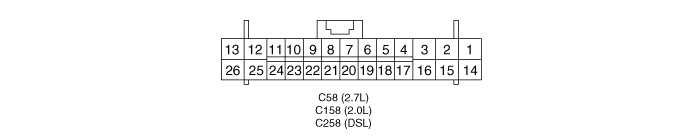

Terminal Number | Wire Color | Description | |
C58 C158 C258 | 1 | R | BATTERY INPUT |
2 | - | BRAKE INPUT | |
3 | B | ECU GROUND | |
4 | G | CAN L | |
5 | O | CAN H | |
6 | L | GND RTN 4 | |
7 | Br | GND RTN 3 | |
8 | L | GND RTN 2 | |
9 | Br | GND RTN1 | |
10 | R | LOCK SWITCH INPUT | |
11 | L/B | STEERING REF C | |
12 | B/O | STEERING REF RTN | |
13 | B | EMC RTN | |
14 | W | ISO9141 K LINE | |
15 | R/B | IGNITION INPUT | |
16 | Gr/O | 4WHEEL DRIVE INDICATOR | |
17 | O | FRONT RIGHT SPEED SENSOR | |
18 | R | FRONT LEFT SPEED SENSOR | |
19 | R | REAR LEFT SPEED SENSOR | |
20 | O | REAR RIGHT SPEED SENSOR | |
21 | Y | DIAGNOSTIC OUT | |
22 | - | TPS INPUT | |
23 | Gr/O | STEERING 1 INPUT | |
24 | L | STEERING 2 INPUT | |
25 | Gr/B | STEERING REF 5V | |
26 | R | EMC OUTPUT | |
