Description
caution

ECM connector consists of many small terminals. It is recommended that using the needle backprobe adaptor for protecting terminal. Inspect terminals easily using the needle backprobe adaptor also.

Diagnostic procedure
ECM connector inspection
1.

Disconnect the ECM connector.

2.

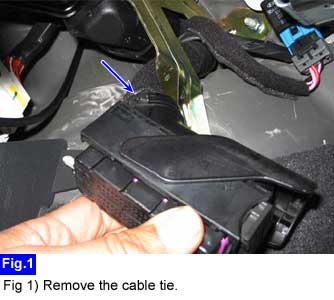

Remove the cable tie.

3.

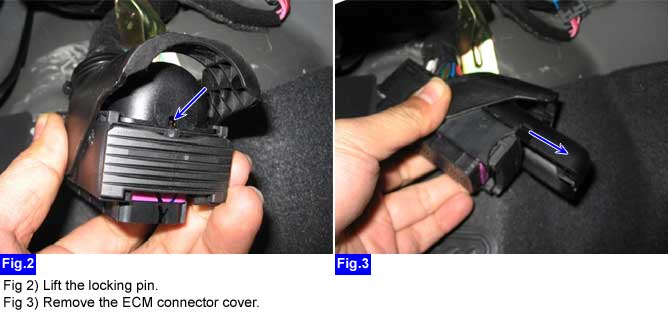

Remove the ECM connector cover.

- Remove the ECM connector cover after lifting the locking pin.

4.

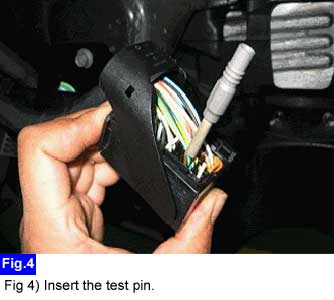

Insert the needle backprobe adaptor to terminal for inspection.

5.

Measure the resistance (Continuity test) and the voltage if necessary.

6.

Assemble the ECM connector in inverse order after inspection.

7.

Use new cable tie.
