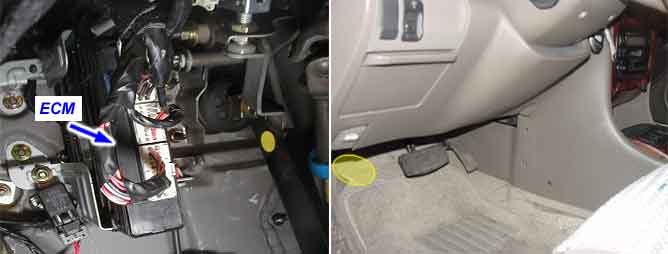

The TCM can either receive data from the Engine Control Module or ABS control module, or it can send data to the ECM and ABSCM by using CAN communication. The CAN communicaton is one of the vehicle communications method, which is now widely used to transfer the vehicle data.
The TCM reads data on the CAN-BUS line and checks whether the data is equal to the data which the TCM sent before. If the data is not the same the TCM decides that either the CAN-BUS line or TCM are malfuncting and sets this code.
Item | Detecting Condition | Possible cause |
DTC Strategy | ● Check voltage range | ● Open or Short in CAN communication harness ● Faulty TCM |
Enable Conditions | ● IG switch on ● No actuator test ● No FAIL SAFE status of 3rd gear holding ● No FAIL in PG-A,B ● power voltage ≥ 10V is detected for a series of 0.5 sec ● Engine STOP, | |
Threshold Value | ● In case of no ECU information. | |
Diagnostic Time | ● 1.5sec | |
Fail Safe | ● INTELLIGENT SHIFT and is inhibited ● learning for oil pressure control is inhibited ● Torque Retard requirement is inhibited. ● direct connection control of TCC is inhibited. |
