3.

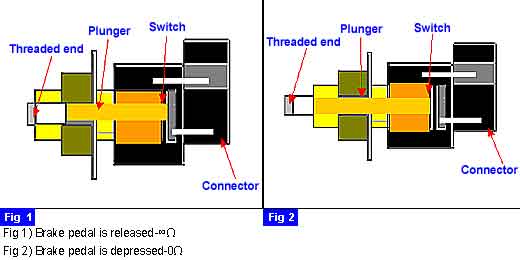

Measure resistance between terminal "1" and "2" of the STOP LAMP SWITCH when plunger of the STOP LAMP SWITCH is pushed in.
a.
Specification : Infinite
Ignition "OFF"
Disconnect "STOP LAMP SWITCH" connector and Remove "STOP LAMP SWITCH" .

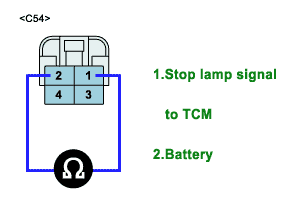

Measure resistance between terminal "1" and "2" of the STOP LAMP SWITCH when plunger of the STOP LAMP SWITCH is pushed in.
Specification : Infinite
Is resistance within specifications ?
YES
Go to "Adjust STOP LAMP SWITCH" as below .
NO
Replace "STOP LAMP SWITCH" as necessary and Go to "Verification Vehicle Repair" proceduredure
Ignition "OFF"
Reinstall "STOP LAMP SWITCH" .

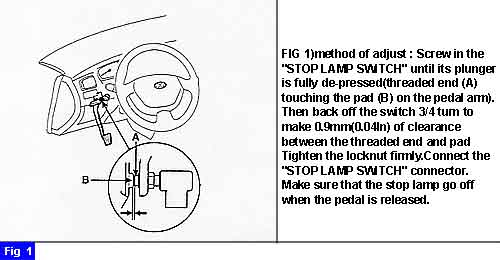

Adjust "STOP LAMP SWITCH" Clearance as below
Specification : 0.9mm(0.04In)
After Adjusting, Has problem been solved ?
YES
Go to "Verification Vehicle Repair" procedure.
NO
Substitute with a known-good TCM/PCM and check for proper operation. If the problem is corrected, replace TCM/PCM as necessary and go to "Verification Vehicle Repair" procedure.
