2.

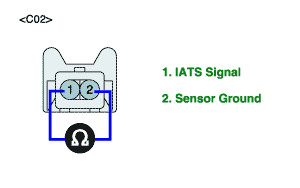

Measure resistance between terminals 1 and 2 of the IAT sensor connector(Component side).
Specification : (at 20℃ (68℉))
Temperature | Resistance (kΩ) |
-20℃ (-4℉) | Approx. 14.26~16.02 |
20℃ (68℉) | Approx. 2.35~2.54 |
80℃ (176℉) | Approx. 0.31~0.32 |
Ignition "OFF"
Measure resistance between terminals 1 and 2 of the IAT sensor connector(Component side).
Specification : (at 20℃ (68℉))
Temperature | Resistance (kΩ) |
-20℃ (-4℉) | Approx. 14.26~16.02 |
20℃ (68℉) | Approx. 2.35~2.54 |
80℃ (176℉) | Approx. 0.31~0.32 |
Is resistance within the specification?
YES
▶ Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "Verification of Vehicle Repair" procedure.
NO
▶ Check IAT sensor for contamination, deterioration, or damage. Substitute with a known-good IAT sensor and check for proper operation. If the problem is corrected, replace IAT sensor and then go to "Verification of Vehicle Repair" procedure.
