2.

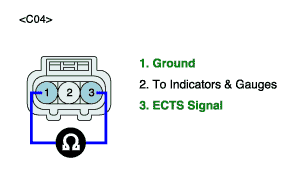

Measure resistance between terminals 1 and 3 of the ECT sensor connector (Component side)
Specification :
Temperature | Resistance (kΩ) |
-20℃ (-4℉) | Approx. 14.13~16.83 |
20℃ (68℉) | Approx. 2.31~2.59 |
80℃ (176℉) | Approx. 0.32 |
Disconnect ECTS connector
Measure resistance between terminals 1 and 3 of the ECT sensor connector (Component side)
Specification :
Temperature | Resistance (kΩ) |
-20℃ (-4℉) | Approx. 14.13~16.83 |
20℃ (68℉) | Approx. 2.31~2.59 |
80℃ (176℉) | Approx. 0.32 |
Is resistance within the specification?
YES
▶ Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "Verification of Vehicle Repair" procedure.
NO
▶ Check ECTS for contamination, deterioration, or damage. Substitute with a known-good ECTS and check for proper operation. If the problem is corrected, replace ECTS and then go to "Verification of Vehicle Repair" procedure.
