4402581

Check for open in circuit

(1)

Ignition "OFF".

(2)

Disconnect ECM and ABS or ESP Control Module connectors.

(3)

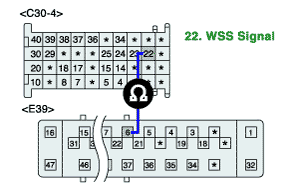

Measure resistance between terminals 22 of the ECM harness connector and 3 of the ABS Control Module harness connector(W/ABS).

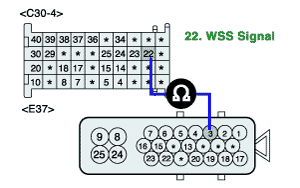

Measure resistance between terminals 22 of the ECM harness connector and 6 of the ESP Control Module harness connector(W/ESP).

Specification : Approx. 0Ω

(4)

Is resistance within the specification?

YES

▶ Go to next step as below

▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.

Check for short to ground in circuit.

(1)

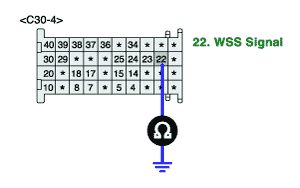

Measure resistance between terminal 22 of the ECM harness connector and chassis ground

Specification : Infinite

(2)

Is resistance within the specification?

YES

▶ Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "Verification of Vehicle Repair" procedure.

▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.

Check for open in circuit.

(1)

Ignition "OFF".

(2)

Disconnect ECM and wheel speed sensor(front right) harness connector.

(3)

Measure resistance between wheel speed sensor harness connector and ECM harness connector.

Specification : Approx. 0Ω

[W/O 4WD]

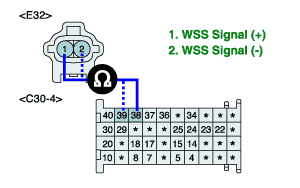

Terminal 1(sensor) & Terminal 38(ECM)

Terminal 2(sensor) & Terminal 39(ECM)

[With 4WD]

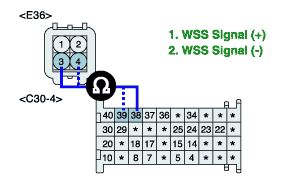

Terminal 3(sensor) & Terminal 38(ECM)

Terminal 4(sensor) & Terminal 39(ECM)

(4)

Is resistance within the specification?

YES

▶ Go to next step as below.

▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.

Check for short to ground in circuit.

(1)

Measure resistance between terminal 38 of the ECM harness connector and chassis ground.

(2)

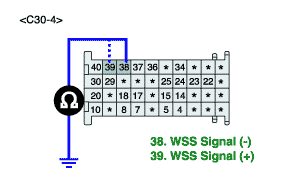

Measure resistance between terminal 39 of the ECM harness connector and chassis ground.

Specification : Infinite

(3)

Is resistance within the specification?

YES

▶ Check wheel speed sensor(FR) as follow:

Gap between ABS sensor and trigger wheel (Air gap : 0.3~1.1 mm(0.011 ~ 0.043 in))

Trigger wheel condition

Sensor resistance : Approx. 1,300~1,900Ω at 20℃(68℉)

Replace wheel speed sensor as necessary and go to "Verification of Vehicle Repair" procedure.

▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.
