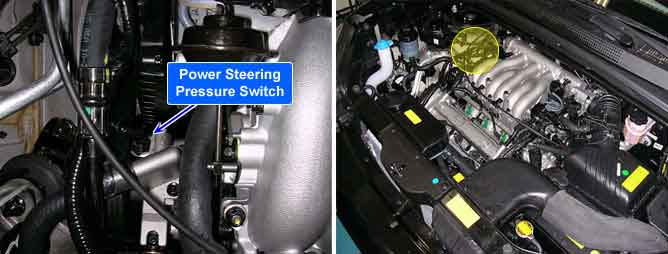

Component Location
DTC Detecting Condition

ITEM

DETECTING CONDITION

POSSIBLE CAUSE

DTC Strategy

● Power steering switch check

● Open or short circuit

● Contact resistance in connectors

● Faulty power steering switch

Enable Conditions

● No vehicle speed error

● Coolant temperature>75℃(167℉)

● Power steering switch is ON

Threshold Value

● Power steering is ON with vehicle speed 〉97km/h (60 mph) & time 〉 25.5 sec.

Diagnostic Time

● 0.1 sec.

Schematic Diagram
