Terminal and Connector Inspection
1.

Electrical systems consist of a lot of harness and connectors, poor connection of terminals can cause various problems and damge of component.

2.

Perform checking procedure as follows.

(1)

Check damage of harness and terminals : Check terminals for contact resistance, corrosion and deformation.

(2)

Check connecting condition of ECM and component connector : Check terminal seperation, damage of locking device and connecting condition between terminal and wiring.

caution

Disconnect the pin which requires checking at male connector and insert it to the terminal at female connector for checking connecting condition. ( after checking, reconnect the pin at correct position. )

3.

Is the problem found?

YES

a.

Repair the trouble causing part and go to "Verification of Vehicle Repair".

NO

a.

Go to "Power Circuit Inspection".

Power Supply Circuit Inspection
1.

Check power circuit voltage

(1)

IG KEY "OFF", ENGINE "OFF".

(2)

Disconnect Vehicle Speed Sensor connector.

(3)

IG KEY "ON".

(4)

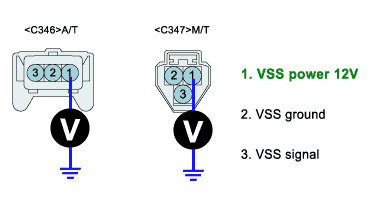

Measure the voltage of VSS connector terminal 1.

a.

Secification : 11.5V~13.0V

(5)

Is the measured voltage within the specification?

YES

a.

Go to "Signal Circuit Inspection".

NO

a.

Repair I/P JUNCTION BOX 10A ECU FUSE and related circuit, and go to "Verification of Vehicle Repair".

Signal Circuit Inspection
1.

IG KEY "OFF", ENGINE "OFF".

2.

Disconnect VSS connector.

3.

IG KEY "ON".

4.

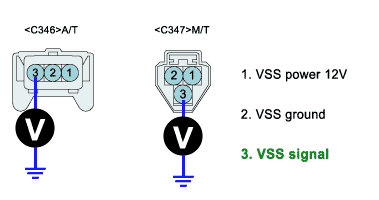

Measure the voltage of VSS connector terminal 3.

a.

Specification : 8.0V~11

5.

Is the measured voltage within the specification?

YES

a.

Go to "Ground Circuit Inspection".

NO

a.

Repair poor connection or open in joint connector C226 terminal 17 related circuit and go to "Verification of Vehicle Repair".

Ground Circuit inspection
1.

IG KEY "OFF", ENGINE "OFF".

2.

Disconnect VSS connector.

3.

IG KEY "ON".

4.

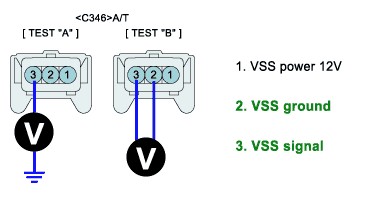

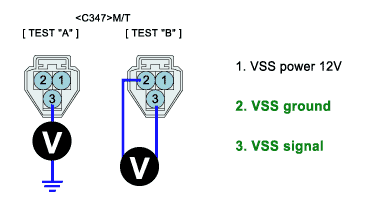

Measure the voltage of VSS connector terminal 3. [ TEST "A" ]

5.

Measure the voltage between VSS connector terminal 3 and 2. [ TEST "B" ]

(terminal 3 : Check + prove , terminal 2 : Check - prove)

a.

Specification : [TEST "A"] Voltage - [TEST "B"] Voltage = below 200mV

6.

Is the measured voltage within the specification?

YES

a.

Go to "Component Inspection".

NO

a.

When "B" voltage is not detected : Repair open in ground circuit and go to "Verification of Vehicle Repair".

b.

When the voltage difference between "A" and "B" is above 200mV : Eliminate the causes of excessive resistance and go to "Verification of Vehicle Repair".
