1.
Check EGR actuator component resistance
(1)
IG KEY "OFF", ENGINE "OFF".
(2)
Disconnect EGR actuator.
(3)

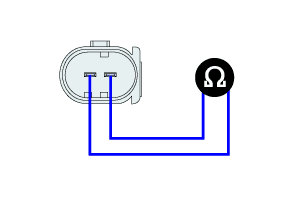

Measure the resistance between EGR actuator component terminal 1 and 2.
a.
Secification : 7.3~ 8.8Ω (30℃)
(4)
Is EEGR actuator component resistance within the specification?
YES
a.
Go to "Verification of Vehicle Repair".
NO
a.
Replace EEGR actuator and go to "Verification of Vehicle Repair".
