4.

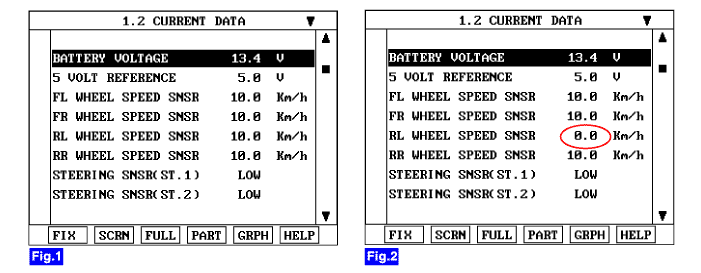

Monitor the "Wheel speed sensor(RL)" parameter on the Scantool.
a.
Specification : Approx. 10km/h or more(6mph or more)
Connect scantool to Data Link Connector(DLC)
Engine "ON".
Start and drive vehicle in gear and maintain vehicle speed is approx. 10km/h or more(6mph or more)
Monitor the "Wheel speed sensor(RL)" parameter on the Scantool.
Specification : Approx. 10km/h or more(6mph or more)
Is parameter displayed within specifications?
YES
Fault is intermittent caused by wheel speed sensor(RL) and/or faulty HECU or was repaired and HECU memory was not cleared. Go to "Compont Inspection" procedure.
NO
Check for improper installation of wheel speed sensor. If NG, repair as necessary and then go to "Verification of vehicle Repair" procedure.
Check for damage of rotor teeth or wheel bearing. If NG, repair as necessary and then go to "Verification of vehicle Repair" procedure.
Substitute with a known-good Wheel speed sensor and check for proper operation. If problem is corrected, replace Wheel speed sensor and then go to "Verification of Vehicle Repair" procedure.
If OK, Go to "Component Inspection" Procedure.
