YES
1. Ignition "ON" & Engine "OFF"
2. Connect Scan tool and cleare the DTCs
3. If the DTCs are retrived again, monitor "CURRENT DATA" to check No. of Learnt key, ECM and KEY status

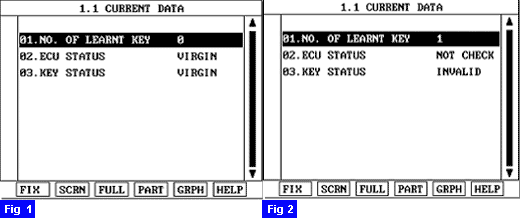

Fig. 1 : ECM has not matched with any Key yet.
Fig. 2 : ECM Internal Failure.

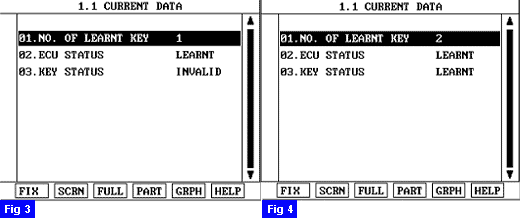

Fig. 3 : IG On with unmatched key.
Fig. 4 : 2(two) Keys have been matched with ECM.
4. Are both Key and ECM status learnt ?
YES
Fault is intermittent caused by poor contact in the SMARTRA’s and/or ECM’s connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
Go to " W/Harness Inspection" procedure.
