3.

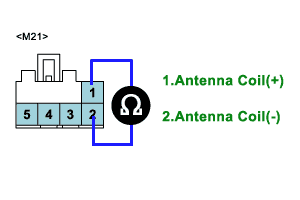

Measure resistance between terminal 1 and 2 of the SMARTRA connector (Component side)
a.
Specification : Approx. 8.6 Ω
Ignition " OFF"
Disconnect SMARTRA connector
Measure resistance between terminal 1 and 2 of the SMARTRA connector (Component side)
Specification : Approx. 8.6 Ω
Is the measured resistance within specifications ?
YES
Go to " Check SMARTRA" as below.
NO
Substitute with a known-good Antenna Coil and check for proper operation. If the problem is corrected, replace Antenna Coil. And then, go to "Verification of Vehicle Repair" procedure.
Ignition " ON" & Engine " OFF "
Perform neutral mode, key teaching/changing and password teaching according to description in "System inspection" procedure
Be sure that PIN code is prepared before performing neutral mode.
Is Key teaching completed ?
YES
Go to "Verification of Vehicle Repair" procedure.
NO
Substitute with a known-good SMARTRA and check for proper operation. If the problem is corrected, replace SMARTRA and Go to "Verification of Vehicle Repair" procedure
In case of faulty SMARTRA, there are no special procedures required. A new SMARTRA device simply replaces the old one. (There are no transponder-related data stored in this device.)
