3.

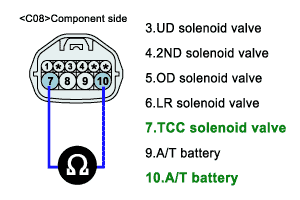

Measure resistance between terminal "7" and terminal "10" of the ATM SOLENOID VALVE harness connector
a.
Specification: Approximately 2.7~3.4 Ω (20℃)
Ignition "OFF"
Disconnect "A/T SOLENOID VALVE" connector
Measure resistance between terminal "7" and terminal "10" of the ATM SOLENOID VALVE harness connector
Specification: Approximately 2.7~3.4 Ω (20℃)
Is resistance within specifications?
YES
Go to "CHECK PCM/TCM" as below
NO
Replace TCC SOLENOID VALVE as necessary and go to "Verification Vehicle Repair" procedure
Connect scantool to data link connector(DLC)
Ignition "ON" & Engine "OFF".
Select A/T Solenoide valve Actuator test and Operate Actuator test.
Can you hear operating sound for using TCC SOLENOID VALVE Actuator Testing Function ?
YES
Go to "Verification Vehicle Repair" procedure
NO
Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "Verification of Vehicle Repair" procedure.
ACTUATOR TEST CONDITION
1. IG SWITCH ON
2. TRANSAXLE RANGE SWITCH is normal
3. P RANGE
4. Vehicle Speed 0km/h
5. Throttle position sensor＜ 1V
6. IDLE SWITCH ON
7. ENGINE RPM 0
