Component Inspection
Check "INPUT SPEED SENSOR"
1.

Ignition "OFF"

2.

Disconnect the "INPUT SPEED SENSOR" connector

3.

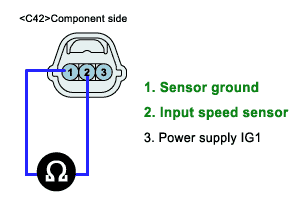

Measure resistance between terminal "1","2" and "2","3" and "1","3" of the "INPUT SPEED SENSOR" connector.

a.

Specification : Refer to " Reference data"

[Reference data]

Data

Reference Data

Current

22 mA

Air Gab

Input sensor

1.3 mm

Output sensor

0.85 mm

Resistance

Input sensor

Above 4 ㏁

Output sensor

Above 4 ㏁

Voltage

High

4.8 ~ 5.2V

Low

Below 0.8V

4.

Is resistance within specifications?

YES

a.

Go to "CHECK PCM/TCM " as below

NO

a.

Replace "INPUT SPEED SENSOR" as necessary and Go to "Verification Vehicle Repair" procedure

Check PCM/TCM
5.

Ignition "ON" & Engine "OFF".

6.

Connect "INPUT SPEED SENSOR" connector.

7.

Install scantool and slect a SIMU-SCAN,

8.

Simulate frequency to INPUT SPEED SENSOR signal circuit.

9.

Is "INPUT SPEED SENSOR" signal value changed according to simulation frequency?

YES

a.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

NO

a.

Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "Verification of Vehicle Repair" procedure.
