Component Inspection
Check "OUTPUT SPEED SENSOR"
1.

Ignition "OFF"

2.

Disconnect the "OUTPUT SPEED SENSOR" connector

3.

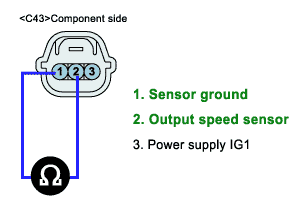

Measure resistance between terminal "1","2" and "2","3" and "1","3" of the "OUTPUT SPEED SENSOR" connector.

a.

Specification : Refer to " Reference data"

[Reference data]

Data

Reference Data

Current

22 mA

Air Gab

Input sensor

1.3 mm

Output sensor

0.85 mm

Resistance

Input sensor

Above 4 ㏁

Output sensor

Above 4 ㏁

Voltage

High

4.8 ~ 5.2V

Low

Below 0.8V

4.

Is resistance within specifications?

YES

a.

Go to "CHECK PCM/TCM " as below

NO

a.

Replace "OUTPUT SPEED SENSOR" as necessary and Go to "Verification Vehicle Repair" procedure

Check PCM/TCM
5.

Ignition "ON" & Engine "OFF".

6.

Connect "OUTPUT SPEED SENSOR" connector.

7.

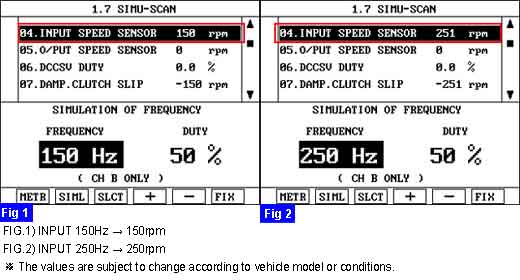

Install scantool and slect a SIMU-SCAN,

8.

Simulate frequency to OUTPUT SPEED SENSOR signal circuit.

9.

Is "OUTPUT SPEED SENSOR" signal value changed according to simulation frequency?

YES

a.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

NO

a.

Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "Verification of Vehicle Repair" procedure.
