2.

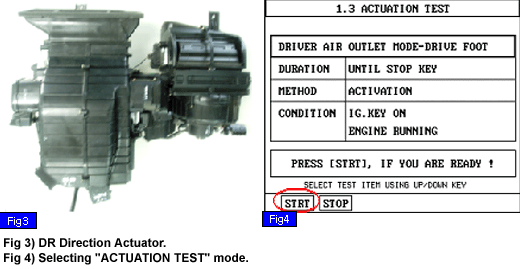

Connect Scantool and select " ACTUATION TEST" mode and press [F1]
※Check if DR Direction Actuator works properly through ACTUATION TEST.
Ignition : ON
Connect Scantool and select " ACTUATION TEST" mode and press [F1]
Dose DR Direction Actuator work properly?
YES
Go to "Component Inspection" procedure
NO
Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
