Check A/CON relay component resistance
IG KEY "OFF", ENGINE "OFF".
Disconnect A/CON relay.

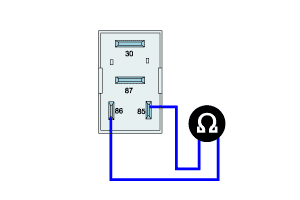

Measure the coil resistance of A/CON relay.
Secification : 85±5 Ω (20℃)
Is the measured resistance within the specification?
YES
Go to "2. Check A/CON relay component operation" as follows.
NO
Replace A/CON relay and go to "Verification of Vehicle Repair".
Check A/CON relay component operation
IG KEY "OFF", ENGINE "OFF".
Disconnect A/CON relay.

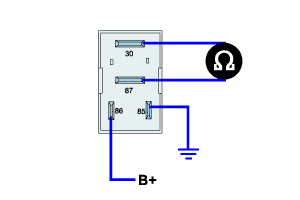

Supplies random B+ and ground to coil sides of A/C relay ( terminal 85, terminal 86).
Check continuity between A/C relay terminal 30 and terminal 87.
Secification : When power is supplied : Continuity ( below 1.0Ω )
When power is not supplied : Discontinuity ( Infinite Ω )
Is the continuity test within the specification?
YES
Go to "Verification of Vehicle Repair".
NO
Replace A/CON relay and go to "Verification of Vehicle Repair".
※ Repeat this process 2~3 times.
