When the vehicle is turning with respect to a vertical axis the yaw rate sensor detects the yaw rate electroniclly by the vibration change of plate fork inside the yaw rate sensor.
If yaw velocity reaches the specific velocity after it detects the vehicle' yawing, the ESP control is reactivated.
The later G sensor senses vehicle's lateral G. A small element inside the sensor is attached to a deflectable leverarm by later G.
Direction and magnitude of lateral G loaded to vehicle can be known with electrostatic capacity changing according to lateral G.

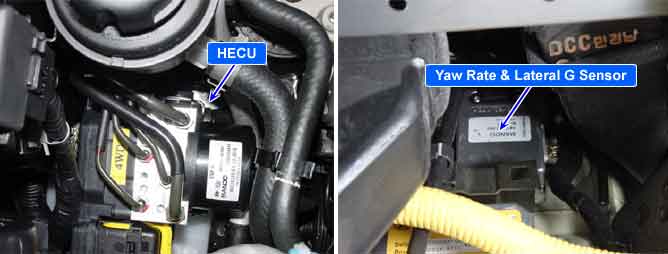

It interchanges signals with HECU through extra CAN line which only used for communication between HECU and sensor.
The HECU checks the sensor CAN H/W for normal ESP control, and sets this code if a sensor CAN H/W malfunction is detected.
Item | Detecting Condition | Possible cause |
DTC Strategy |
•
Internal Monitoring |
•
Faulty HECU
•
Faulty Yaw Rate & Lateral G sensor |
Enable Conditions |
•
Sensor CAN H/W failure. | |
Fail Safe |
•
Inhibit the ESP control and allow the ABS/EBD control.
•
The ESP warning lamp is activated. |
