Monitor Scantool Data
1.

Connect scantool to Data Link Connector(DLC).

2.

Ignition "ON" & Engine "ON".

3.

Press the brake pedal.

4.

Monitor the "PRESSURE SENSOR" parameter on the Scantool.

Specification : Approx. 60bar ~150bar (There is difference in displayed parameter according to braking force)

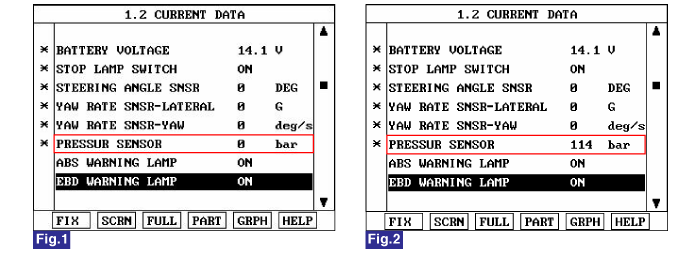

Fig 1) Test Condition : Ignition "ON" & Engine "ON".

Normal Data

Fig 2) Test Condition : Ignition "ON" & Engine "ON" & Brake "ON".

Normal data (There is difference in displayed parameter according to braking force)

5.

Whenever brake pedal is pushed down, is the pressure sensor's scantool data changed?

▶ Fault is caused by having been repaired and HECU memory was not cleared.

Clear the DTC and then go to "Verification of Vehicle Repair" procedure.

▶ Go to "Component Inspection" procedure.
