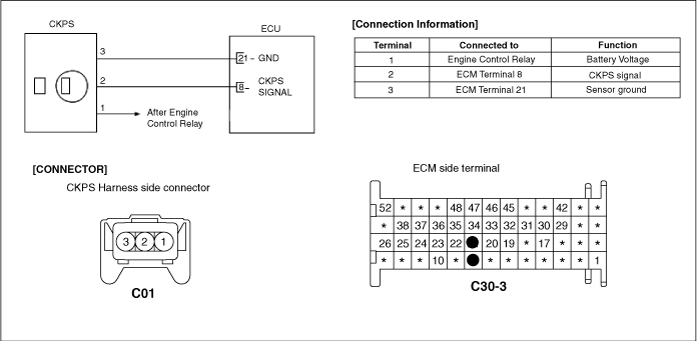

The Crankshaft Position Sensor (CKPS) is a hall effect type sensor that generates voltage using a sensor and a target wheel mounted on the crankshaft; there are 58 slots in the target wheel where one is longer than the others. When the slot in the wheel aligns with the sensor, the sensor voltage outputs low. When the metal (tooth) in the wheel aligns with the sensor, the sensor voltage outputs high. During one crankshaft rotation there are 58 rectangular signals and one longer signal. The ECM calculates engine RPM by using the sensor’ s signal and controls the injection duration and the ignition timing. Using the signal differences caused by the longer slot, the ECM identifies which cylinder is at top dead center.
The ECM sets DTC P0335 when the number of crankshaft teeth during one revolution is incorrect or crankshaft signal is missing while camshaft signal is detected.
ITEM | DETECTING CONDITION | POSSIBLE CAUSE | |
DTC Strategy | ● Check Crankshaft Signal Switching | ● Open or short in signal, ground or power supply circuit ● Contact resistance in connectors ● Damage to the connecting flange/flywheel ● Misadjust crankshaft and camshaft pulley position ● Faulty CKP sensor | |
Case 1 | Enable Conditions | ● Before Synchronization | |
Threshold Value | ● Valid Crankshaft Teeth not yet detected with Camshaft Signal ● Can not detect TDC with valid Crankshaft Teeth and Camshaft Signal | ||
Diagnosis Time | ● 4 revolutions | ||
Case2 | Enable Conditions | ● After Synchronization | |
Threshold Value | ● Number of Crankshaft Tooth is not correct | ||
Diagnosis Time | ● 5 revolutions | ||
Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode.
Press F4(DTAL) to select DTC information from the DTCs menu.
Confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions
Read "DTC Status" parameter.
Is parameter displayed "History(Not Present) fault"?
History (Not Present) fault : DTC occurred but has been cleared.
Present fault : DTC is occurring at present time.
▶ Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for loose or poor connections, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.
▶ Go to next step as below.
Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Has a problem been found?
▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.
▶ Go to "Power Supply Circuit Inspection" procedure.
Ignition "OFF".
Disconnect CKP sensor connector.
Ignition "ON" & Engine "OFF".
Measure voltage between terminal 1 of the sensor harness connector and chassis ground.
Specification : Approx. B+
Is voltage within the specification?
▶ Go to "Ground Circuit Inspection" procedure
▶ Check for a open in the power supply circuit between the main relay and the crankshaft position sensor,
Especially check for open or blown 10A sensor fuse refer to "Component Circuit".
Repair as necessary and go to "Verification of Vehicle Repair" procedure.
Ignition "OFF".
Measure resistance between terminals 3 of the sensor harness connector and chassis ground.
Specification : Approx. 0Ω
Is resistance within the specification?
▶ Go to "Signal Circuit Inspection" procedure.
▶ Check for an open in the ground circuit. Repair as necessary and go to "Verification of Vehicle Repair" procedure.
Check for open in signal harness.
Ignition "OFF".
Measure resistance between terminals 2 of the sensor harness connector and 8 of the ECM harness connector.
Specification : Approx. 0Ω
Is resistance within the specification?
▶ Go to next step as below
▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.
Check for short to ground in signal harness.
Measure resistance between terminal 2 of the sensor harness connector and chassis ground
Specification : Infinite
Is resistance within the specification?
▶ Go to next step as below
▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.
Check for short to power in signal harness.
Ignition "ON" & Engine "OFF"
Measure voltage between terminal 2 of the sensor harness connector and chassis ground
Specification : Approx. 0V
Is voltage within the specification?
▶ Go to "Component Inspection" procedure
▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.
Start engine and let vehicle idle
Connect scantool and select "Current Data" mode
Monitor "CKP T/WHEELS-LO CMP" & "CKP T/WHEELS-HI CMP" parameters on the Scantool data list.
Specification :
"CKP T/WHEELS-LO CMP" : 38 +/- 4 tooth
"CKP T/WHEELS-HI CMP" : 98 +/- 4 tooth
Are "CKP T/WHEELS-LO CMP" & "CKP T/WHEELS-HI CMP" parameters within the specification?
▶ Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "Verification Vehicle Repair" procedure .
Remove CKP and calculate air gap between sensor and flywheel/torque converter. Readjust as necessary and go to next step.
Air gap [0.3~1.7 mm [0.012~0.067 in] = measure distance from hosing to teeth on flywheel/torque converter (measurement "A") and from mounting surface on sensor to sensor tip (measurement "B") subtract "B" from "A"
If fail to synchronize with CMP sensor, readjust timing system and go to next step.
Check CKP sensor for contamination, deterioration, or damage. Substitute with a known-good CKP sensor and check for proper operation. If the problem is corrected, replace CKP sensor and then go to "Verification of Vehicle Repair" procedure.
After a repair, it is essential to verify that the fault has been corrected.
Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode.
Press F4(DTAL) and confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
Read "DTC Status" parameter.
Is parameter displayed "History(Not Present) fault"?
▶ System performing to specification at this time. Clear the DTC
▶ Go to the applicable troubleshooting procedure.
