Lambda Sensor is installed on exhaust manifold and is a linear oxygen sensor. It senses oxygen density of exhaust gas in order to control EGR acculately through fuel correction and also limits smoke which is generated by reach air-fuel mixture at high engine load condition. ECM controls pumping current in order to fit λ-value from linear lambda sensor to 1.0.

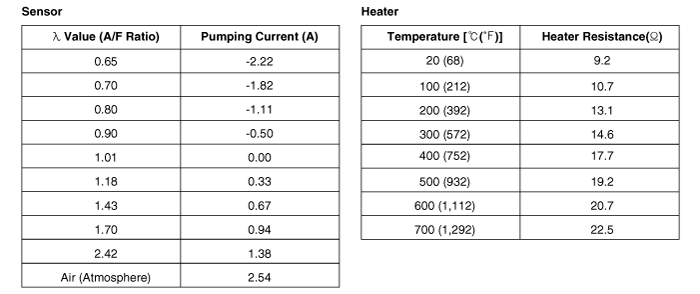

Lean air-fuel mixture(1.0 ＜ λ ＜ 1.1): ECM supplies pumping current to lambda sensor (+pumping current) and activates it for lambda sensor to have the characteristic at λ =1.0 (0.0 pumping current). With the value of pumping current supplied to lambda sensor, ECM detects lambda density of exhaust gas.

Rich air-fuel mixture(0.9 ＜ λ ＜ 1.0): ECM takes away pumping current from lambda sensor (-pumping current) and deactivates it for lambda sensor to have the characteristic at λ =1.0 (0.0 pumping current). With the value of pumping current taken away from lambda sensor, ECM detects lambda density of exhaust gas.

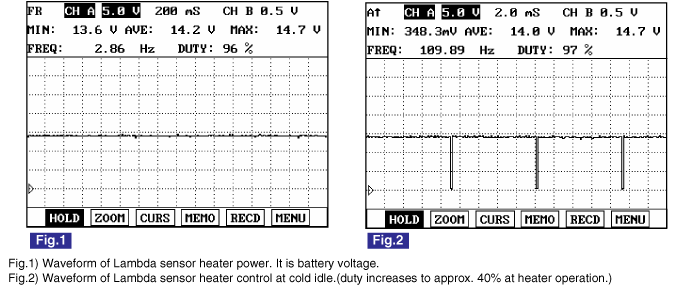

This performance is the most active and fast at normal operating temperature (450℃ ~ 600℃) thus, in order to reach normal operating temp. and last at that temperature, a heater (heating coil) is integrated with lambda sensor. The heater coil is controlled by ECM as Pulse With Modulator (PWM). The resistance of heater coil is low when coil is cold thus, current through it increases while resistance is high when coil is hot thus, current decreases. With this principle, temperature of lambda sensor is measured and lambda sensor heater operation varies based on the data.
