REPLACEMENT
caution

After replacing (an) injector(s), MUST input the injector data (7 digit) into the ECM.

1.

Turn ignition switch OFF.

2.

Replace the injector with a new one according to the "REMOVAL" and "INSTALLATION" procedures.

3.

Connect a scan tool to Data Link Connector (DLC) and turn ignition switch on.

4.

Select "ENGINE CONTROL".

5.

Select "MANUAL SELECTION MODE".

6.

Select "D 2.0L VGT DIESEL".

7.

Select "INJECTOR CORRECTION".

8.

Press "ENTER" key.

9.

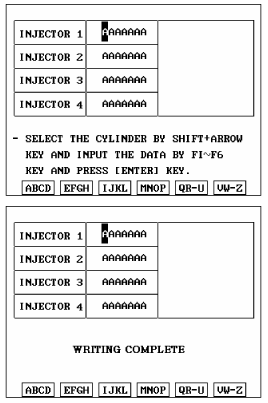

Input the injector data (7 digit) written on the top of each injector with function keys ([F1] ~ [F6]) and number keys.

note

When "WRITING FAIL" is displayed on the scan tool, input injector data (7 digits) of each cylinder into a new ECM again as prior procedure.
