REPLACEMENT
note

After replacing a Variable Swirl Actuator, MUST proceed below procedure.

1.

Turn ignition switch OFF.

2.

Connect a scan tool to Data Link Connector (DLC).

3.

Turn ignition switch ON.

4.

Select "ENGINE CONTROL".

5.

Select "MANUAL SELECTION MODE".

6.

Select "D 2.0L VGT DIESEL".

7.

Select "COMPONET CHANGE ROUTNE"

8.

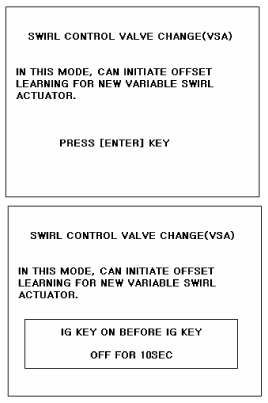

Select "SWIRL CONTROL VALVE CHANGE".

9.

Press "ENTER" key.

10.

Wait 10 seconds with IG ON.

11.

Turn ignition switch off.
