1.

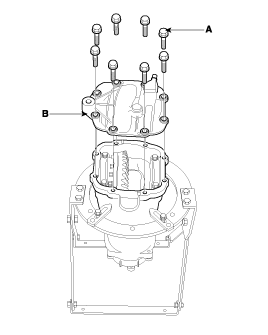

After apply liquid gasket, install the differential cover(B), and install the mounting bolts(A).
Tightening torque
40 ~ 50Nm (400 ~ 500Kgf.cm, 29.5 ~ 36.9lbf.ft)
After apply liquid gasket, install the differential cover(B), and install the mounting bolts(A).
Tightening torque
40 ~ 50Nm (400 ~ 500Kgf.cm, 29.5 ~ 36.9lbf.ft)
After install the differential(B), and install the mounting bolts(A).
Tightening torque
90 ~ 120Nm (900 ~ 1200Kgf.cm, 66.4 ~ 88.5lbf.ft)
Using the transaxle jack(B), install the differential assembly(A).
Connect the coupling control connector(A).
Install the propeller shaft. (See page DS - 69)
Install the rear drive shaft. (See page DS - 63)
Fill the gear oil.
Specified lubricant
Hypoid gear oil (GL-5, 80W / SAE 90)
Oil quantity : Fill the reservoir to the plug hold
(About 0.75 ~ 0.80L)
