1.
Using a clip remover, detach the clips, and remove the hood insulator (A).
note
Take care not to scratch the hood panel.
When removing and installing the hood, an assistant is necessary.
Take care not to damage the hood and body.
When removing the clips, use a clip remover.

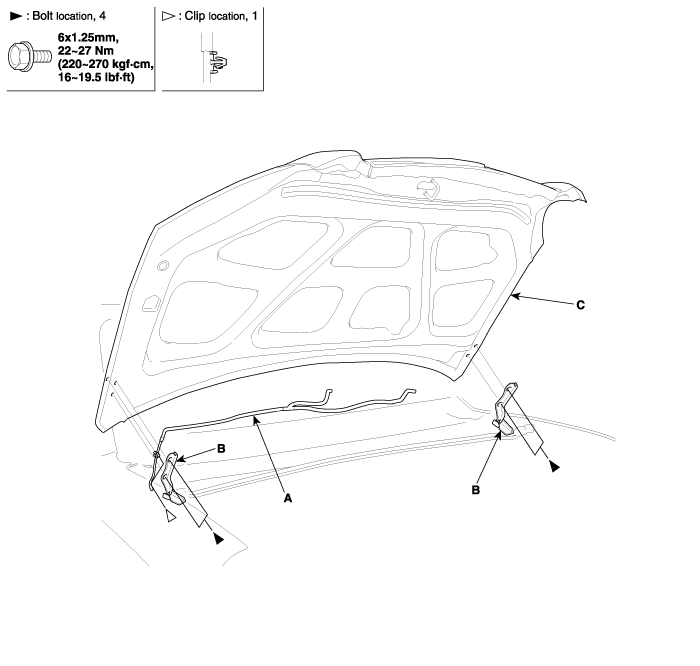

Disconnect the windshield washer nozzle connecting tube (A).
After loosening the hood hinge (B) mounting bolts, remove the hood (C).
Installation is the reverse of removal.
Make sure the hood opens properly and locks securely.
Adjust the hood alignment (See page BD- 12).
Using a clip remover, detach the clips, and remove the hood insulator (A).
Take care not to scratch the hood panel.
Installation is the reverse of removal.
Replace any damaged clips.

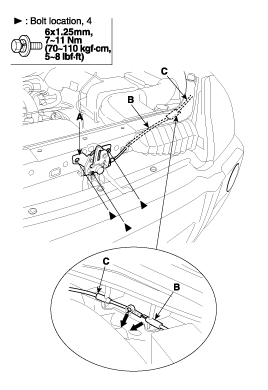

Remove the hood cover (A).
Remove the hood latch (A) mounting bolts.
Disconnect the hood latch cable (B) and release cable (C).
Installation is the reverse of removal.
Make sure the hood latch cable is connected properly.
Make sure the hood locks securely.

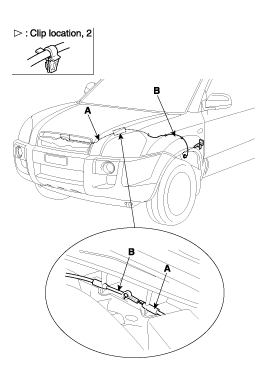

Remove the following items:
Hood release handle (see page BD- 10)
Wheel guard (see page BD- 45)
Using a clip remover, detach the clips from the body, then disconnect the hood latch cable (A) and release cable (B).
Take care not to bend the cable.
Installation is the reverse of removal.
Make sure the hood latch cable is connected properly.
Replace any damaged clips.

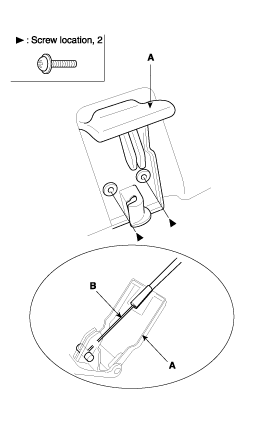

Remove the screws, then remove the hood release handle (A).
Disconnect the hood latch cable (B) from the hood release handle. Take care not to bend the cable.
Installation is the reverse of removal.
Make sure the hood latch cable is connected properly.
Make sure the hood opens properly.
Detach the clips, then remove the hood weathersrip (A). Take care not to scratch the hood.
Installation is the reverse of removal.
Replace any damaged clips.
