2.
Carefully move the glass (A) until you can see the bolts, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot (B).
caution
Take care not to drop the glass and scratch the glass surface.
Put on gloves to protect your hands.
Remove the door trim (see page BD- 25).
Carefully move the glass (A) until you can see the bolts, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot (B).
Take care not to drop the glass and scratch the glass surface.
Installation is the reverse of removal.
Roll the glass up and down to see if it moves freely without binding.
Make sure that there is no clearance between the glass and glass run channel when the glass is closed.
Adjust the position of the glass as necessary (see page BD- 32).
Remove the door trim (see page BD- 25).
Remove the glass (see page BD- 26).
Loosen the rear channel mounting nuts.
After disconnecting the glass molding, remove the rear channel (A).
Installation is the reverse of removal.
Remove the door trim (see page BD- 25).
After disconnecting the connector (A), remove the power window motor (B).
Installation is the reverse of removal.
Roll the glass up and down to see if it moves freely without binding.
Put on gloves to protect your hands.
Remove the front door trim (See page BD- 25).
Remove the glass (see page BD- 26).
Disconnect the wiring harness (A).
Disconnect the lock rod (A) and outside handle rod (B).
Remove the door module (C).
Installation is the reverse or removal.
Make sure the connectors is plugged in properly and each cable is connected securely.
Make sure the door locks and opens properly.
Roll the glass and down to see if it moves freely without binding.
Put on gloves to protect your hands.
Remove the following parts.
Door trim (See page BD- 25).
Glass trim (See page BD- 26).
Rear channel (See page BD- 26).
Disconnect the outside handle rod (A) and lock rod (B).
After removing the outside handle mouting bolt, remove the outside handle base (C) and key cylinder.
After removing the key cylinder (A) and outside handle base (B), remove the outside handle lever (C).
Installation is the reverse of removal.
Make sure the connector is plugged in properly, and each rod is connected securely.
Make sure the door locks and opens properly.
Remove the door trim (See page BD- 25)
Disconnect the speaker connector (A), and remove the speaker (B).
Installation is the reverse of removal.
Remove the front door trim (See page BD- 25).
Loosen the inside handle (A) mounting screw.
Push the inside handle forward to disconnect from the door module.
Disconnect the lock cable and (A) inside handle connect cable (B).
Installation is the reverse of removal
Make sure the door locks and opens properly.
Remove the front door trim (See page BD- 25).

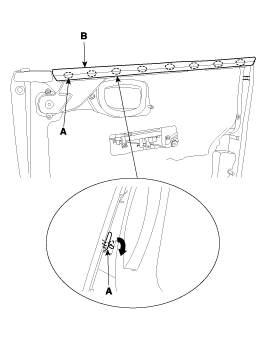

Release the hooks (A), and then remove the door belt weatherstrip (B).
Installation is the reverse of removal.
Remove the front door trim (See page BD- 25).
Remove the glass (see page BD- 26).
Remove the glass run channel (A) from the lower part.
Installation is the reverse of removal.
Release the clips then remove the door weatherstrip (A).
Installation is the reverse of removal.
