1.
Remove the roof rack cover (A).
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Remove the roof rack cover (A).
Remove the roof rack (A).
Installation is the reverse of removal.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Remove the mud guard (A).
Remove the wheel guard (B).
Installation is the reverse of removal.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Remove the mud guard (A).
Remove the wheel guard (B).
Installation is the reverse of removal.
Remove the tailgate trim (See page BD- 13).
Remove the key cylinder (See page BD- 16).
Remove the tailgate garnish (A).
Installation is the reverse of removal.
Open the hood.
Remove the radiator grille (A).
Installation is the reverse of removal.
Wrap the blade of your putty knife or flat tip screwdriver with protective tape to prevent damage to the door.
Be careful not to pry too far or you may bend the garnish.
Put on gloves to protect your hand.
Prepare to remove the garnish from inside the vehicle.
To remove screws the front and rear door panel (See page BD- 25, 37).

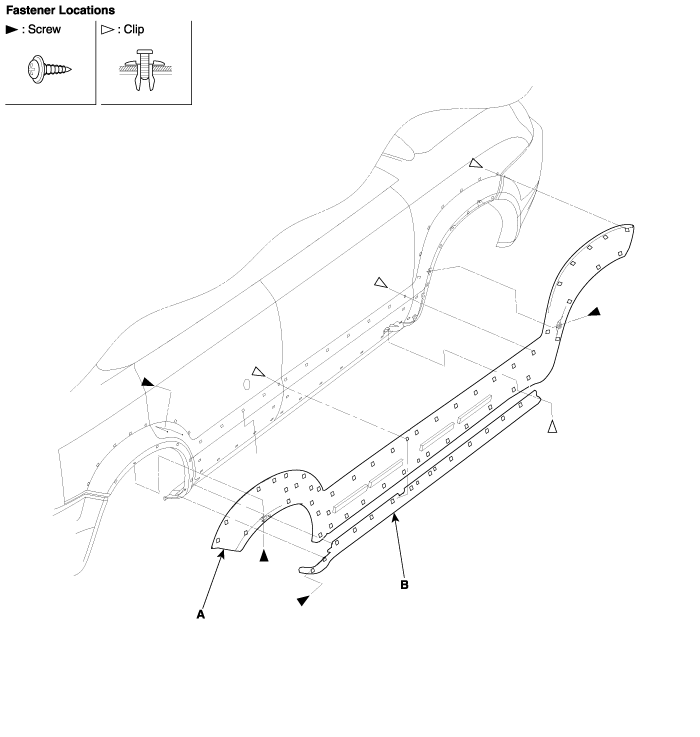

Remove the clips and screws and gently pry the side garnish (A) or side sill (B) away from the door while removing the adhesive tape.
Installation is the reverse of removal.
Replace any damaged clips adhesive tape.
