REPLACEMENT

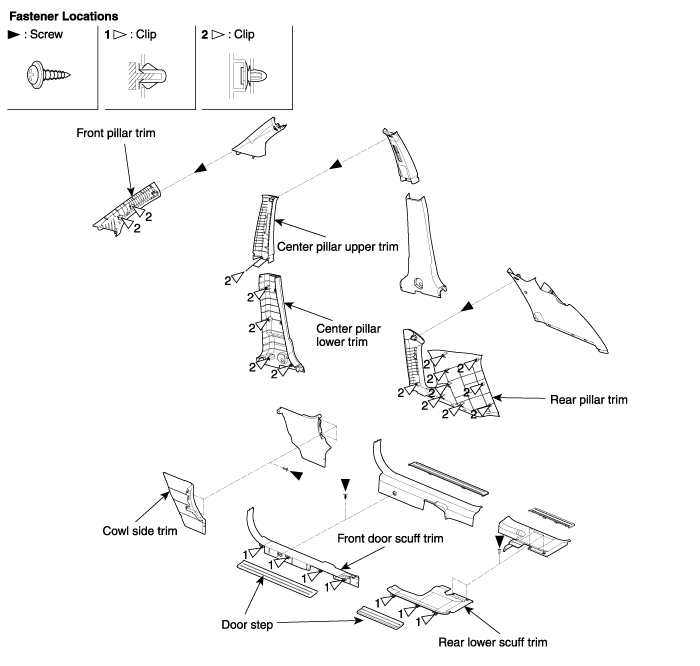

FLOOR AND SIDE AREA
1.

Remove the trims.

note
-

Put on gloves to protect your hands.

-

When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

-

Take care not to bend or scratch the trim and panels.

2.

Installation is the reverse of removal.

note
-

Replace any damage clips.

-

Apply liquid thread lock to the front seat belt upper anchor bolt befor installation.

-

Before installing the anchor bolts, make sure there are ot twists or kinks in the belts.

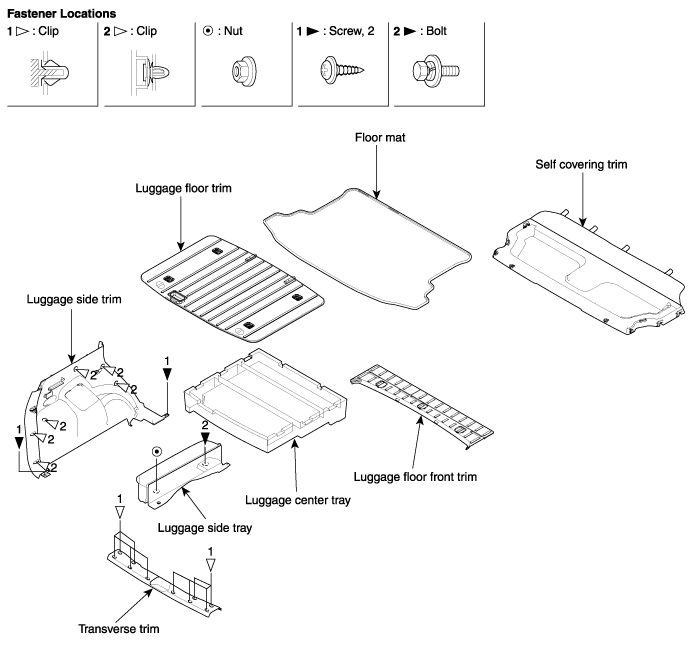

TRUNK AREA
1.

Remove the trims.

note
-

Put on gloves to protect your hands.

-

When prying with a flat-tip screwdriver, wrap it protective tape to prevent damage.

-

Take care not to bend or scratch the trim and panels.

2.

Installation is the reverse of removal, and replace any damaged clips.

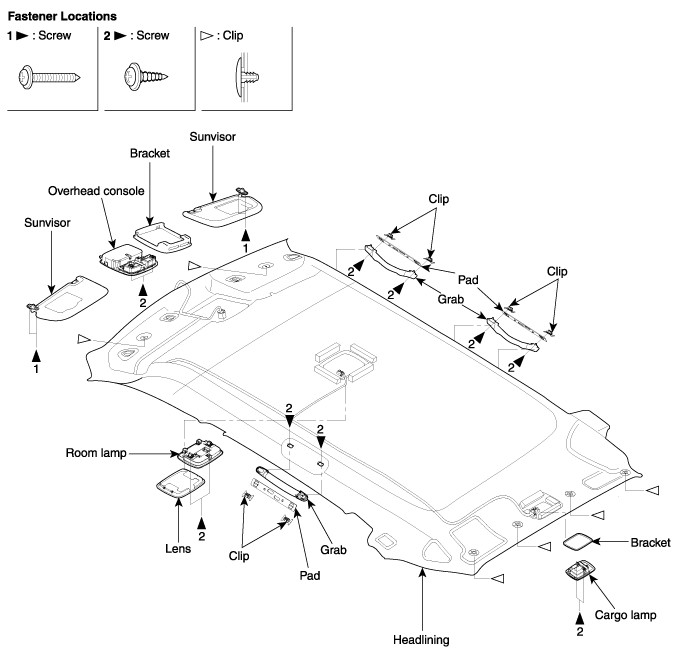

ROOF AREA
1.

Remove the trims.

note
-

Put on gloves to protect your hands.

-

When prying with a flat-tip screwdriver, wrap it protective tape to prevent damage.

-

Take care not to bend or scratch the trim and panels.

2.

Installation is the reverse of removal.

note
-

Replace any damage clips.

-

Apply liquid thread lock to the front seat belt upper anchor bolt before installation.

-

Before installing the anchor bolts, make sure there are not twists or kinks in the belts.
