2.
Remove the protector (A) and hogring clip (B), then remove the cushion (C).

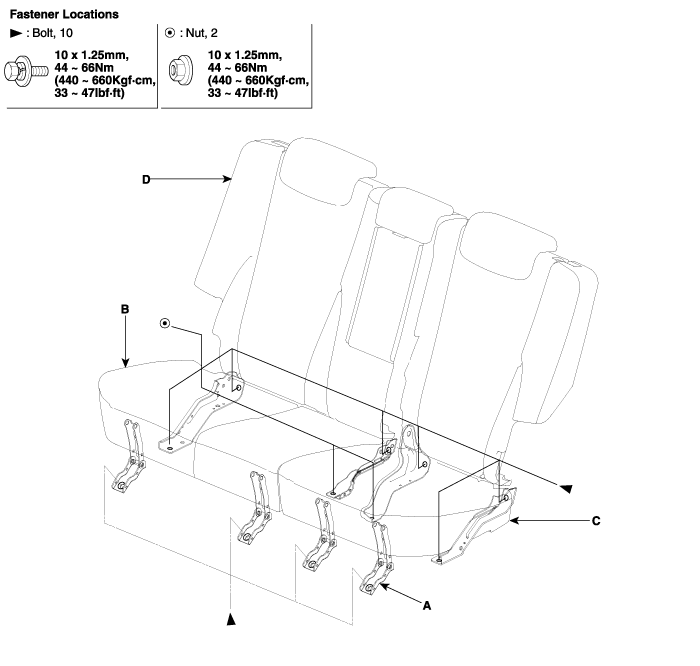

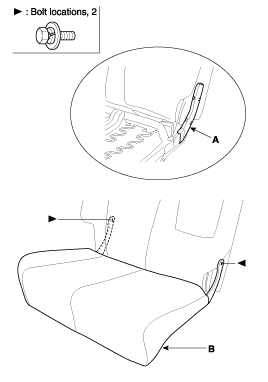

After disconnect the cushion frame hinge (A) cover, loosen the mounting bolts.Fold the cushion (B).
Loosen the recliner hinge (C) mounting nut and bolt, then rear seat assembly (D).
Installation is the reverse of removal.
SEAT MOUNTING BOLT AND NUT INSTALLATION PROCEDURE.
Tighten temporarily in the order of nut and bolt on the front of recliner hinge installation part.
After tighten completely the bolt on the back of the recliner hinge installaion part, tighten completely the bolt on the front of it.
Setting down the seat cushion, tighten the mounting bolt of the cushion frame hinge.
Check if reclining the seat and folding seat back operate smoothly.
After loosening cushion frame hinge mounting bolts, fold the cushion (See page BD- 92).
Remove the protector (A) and hogring clip (B), then remove the cushion (C).

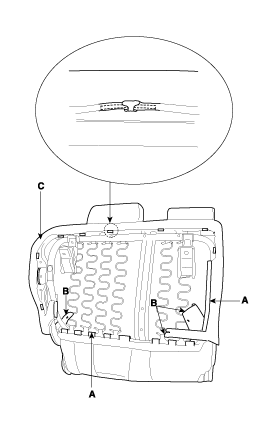

Pull out the hogring clips (A) on the front of seat cushion, remove the seat cushion cover (B).
When removing the hogring clip, remove the hogring clip with pressing the wire not to separate the wire from the sponge
Installation is the reverse of removal.
To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hogring clips (A).
Replace the hogring clips with new ones using special tool (C).
Remove the headrest.
Remove the armrest (See page BD- 98).
Remove the back folding hinge cover (A).
After loosening the mounting bolts,remove the cushion (B).
After folding the seat back,remove the shopping hook (A) from the back panel.
Remove the back panel (A).
Remove the recliner lever cover (A).
Remove the hogring clip (A) and headrest guide (B), then remove the seat back assembly (C).
Remove the hogring clip (A) of the pad.
Disconnect the aplix (A) on the front of seat back, remove the back cover (B).
Installation is the reverse of removal.
To prevent wrinkles, make sure the material is stretched evenly over the cover before securing the aplix
Remove the seat cushion assembly
(See page BD- 97).
Remove the seat back cover (See page BD- 94).
Remove the recliner cover (A).

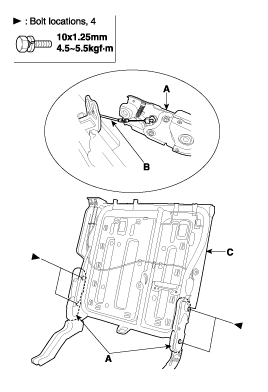

Loosen the recliner (A) mounting bolt.
After disconnecting the recliner cable (B), remove the seat back frame (C).
Installation is the reverse of removal.
Remove the seat cushion hinge mount bolt
(See page BD- 92).
Disconnect the protector and remove the hogring clip. Remove the cushion assembly (A).

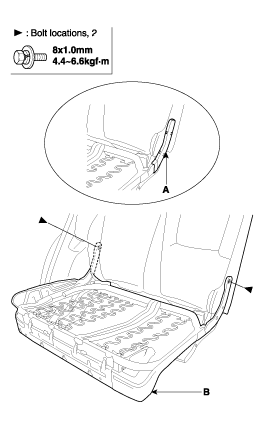

Loosen the back folding cover (A). After loosening the mounting,remove the cushion frame (B).
Installation is the reverse of removal.

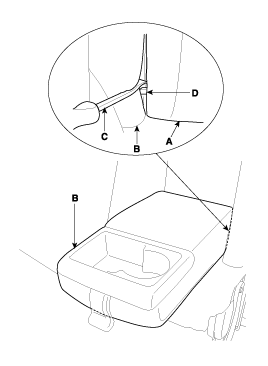

Squeeze out the gap between the seat back (A) and the armrest (B) to open using a screwdriver (C) and remove the bushing (D).
Pushing the arm rest to the left, remove the arm rest.
Remove the armrest cover(A).
Installation is the reverse of removal.
Remove the seat back frame (See page BD- 96).

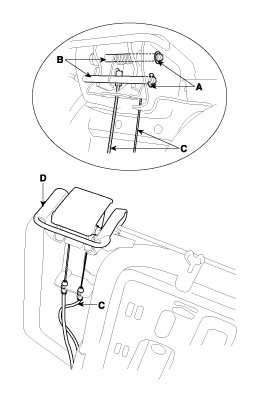

After removing the "E"ring (A) from the recliner mounting pin,remove the recliner mounting pin (B).
Disconnect the recliner cable wire (C),then remove the recliner lever (D).
Installation is the reverse of removal.
