2.
After raise the lower anchor cover (A),loosen the lower anchor mounting bolt (B).
When installing the seat belt, make sure not to damage pretensioner.
Remove the following items first.
Front seat assembly (See page BD- 84).
Front and rear door scarf trim (See page BD- 69).

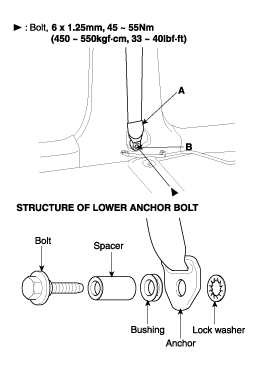

After raise the lower anchor cover (A),loosen the lower anchor mounting bolt (B).
Remove the center pillar lower trim
(See page BD- 69).

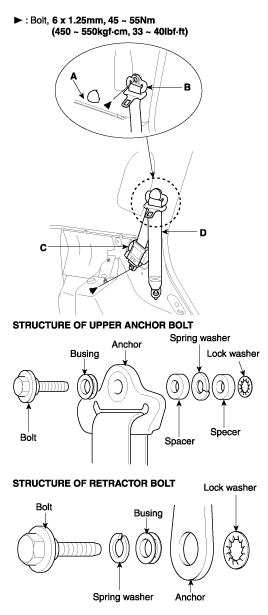

Remove the upper anchor cover (A),then loosen the upper anchor (B).
After disconnecting the pretensioner connector lock pin,remove the connector (C). Loosen the mounting bolt,then remove the pretensioner (D).
When installing the seat belt, make sure not to damage retractor.
Remove the following items first.
Rear seat assembly (See page BD- 92).
Front and rear door scarf trim (See page BD- 69).
Self covering trim (See page BD- 70).
Luggage center trim (See page BD- 70).

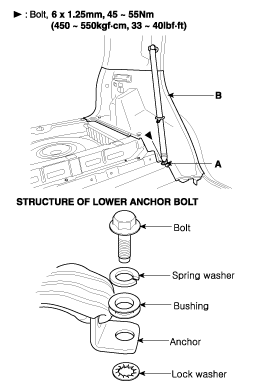

Remove the lower anchor (A).
Remove the luggage side trim (B-See page BD- 70).

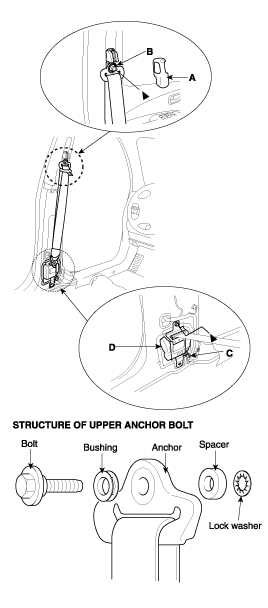

Remove the upper anchor cover (A), then loosen the mounting bolt.Remove the upper anchor (B).
After loosening the retractor (C) mounting bolt, remove the rear seat belt (D).
Remove the following items first.
Front seat assembly (See page BD- 84).
Front seat recliner cover (See page BD- 85).

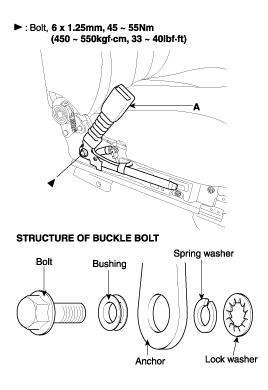

Remove the seat belt buckle (A).
Installation is the reverse of removal.
After cushion frame hinge mounting bolts, fold the cushion (See page BD- 92).

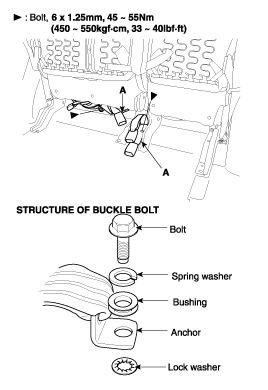

Remove the seat belt buckle (A).
Installation is the reverse of removal.
Remove the following items first.
Front seat assembly (See page BD- 84).
Front and rear door scuff trim (See page BD- 69).
Front seat belt upper and lower anchor
(See page BD- 100).
Center pillar lower and upper trim
(See page BD- 69).

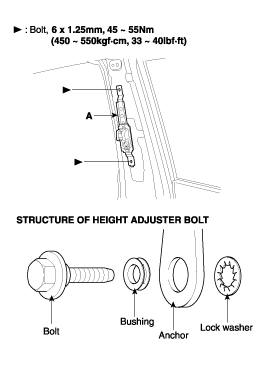

Looesn the mounting bolt, then remove the height adjuster (A).
Installation is the reverse of removal.
