INSPECTION
FRONT DOOR LOCK ACTUATOR INSPECTION
1.

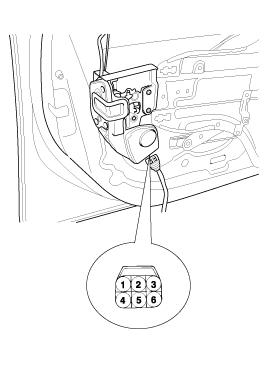

Remove the front door trim panel. (see BD group-front door)

2.

Disconnect the 6P connector from the actuator.

3.

Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

REAR DOOR LOCK ACTUATOR INSPECTION
1.

Remove the rear door trim panel. (see BD group-rear door)

2.

Disconnect the 6P connector from the actuator.

3.

Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

TAILGATE LOCK ACTUATOR INSPECTION
1.

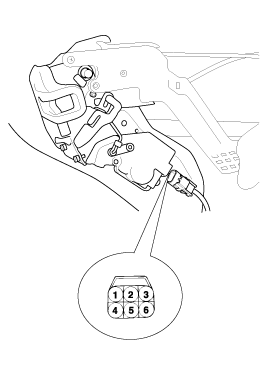

Remove the tailgate trim panel. (see BD group-tailgate)

2.

Disconnect the 6P connector from the actuator.

3.

Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

FRONT DOOR LOCK SWITCH INSPECTION
1.

Remove the front door trim panel. (see BD group-front door)

2.

Disconnect the 6P connector from the actuator.

3.

Check for continuity between the terminals in each switch position according to the table.

REAR DOOR LOCK SWITCH INSPECTION
1.

Remove the rear door trim panel. (see BD group-rear door)

2.

Disconnect the 6P connector from the actuator.

3.

Check for continuity between the terminals in each switch position according to the table.

TAILGATE LOCK SWITCH INSPECTION
1.

Remove the tailgate trim panel. (see BD group - tailgate)

2.

Disconnect the 6P connector from the actuator.

3.

Check for continuity between the terminals in each switch position according to the table.
