INSPECTION
POWER WINDOW MAIN SWITCH
1.

Remove the power window main switch from the driver's door trim panel.

2.

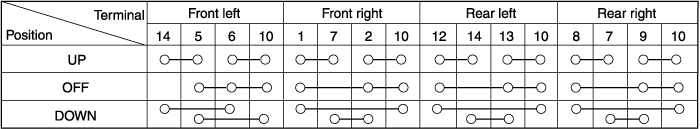

Check for continuity between the terminals.

ASSIST POWER WINDOW SWITCH
1.

Remove the assist power window switch from the assist door trim panel.

2.

Check for continuity between the terminals.

If continuity is not as specified in the table, replace the power window switch.

[without door lock switch]
[with door lock switch]
REAR POWER WINDOW SWITCH
1.

Remove the rear power window switch from the rear door trim panel.

2.

Check for continuity between the terminals.

If continuity is not as specified in the table, replace the power window switch.
