1.

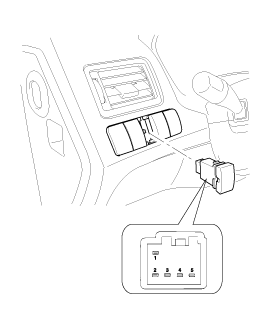

Disconnect the 5P switch connector from the floor side crash pad switch plate.
Disconnect the 5P switch connector from the floor side crash pad switch plate.
Measure the voltage between terminals 3 and 4(V).
Position No. | Rotation | Ratio(±5%) | Voltage (V) |
0 | 0° | 88.7% | 11.97 ± 0.5V |
1 | 20° | 78.5% | 10.60 ± 0.5V |
2 | 40° | 71.7% | 9.68 ± 0.5V |
3 | 60° | 67.87% | 9.16 ± 0.5V |
If the voltage is not as specified, replace the head lamp levelling switch.
