Check status.

(1)

IGN "ON" & Engine "OFF".

(2)

Monitor the "PCM/ECM, Key and Smartra Status" Parameter on the Scantool.

Specification : 'LEARNT'

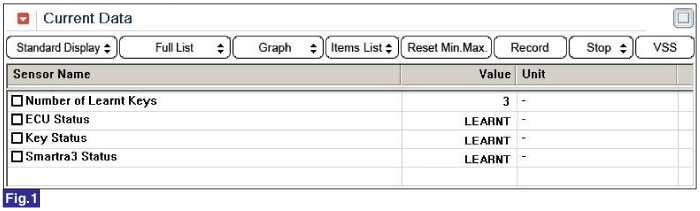

Fig.1) This data show that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA3 has been learnt.

(3)

Is the "ECU STATUS" Parameter "Locked" ?

	▶ Keep "KEY ON" status for 1 hours to withdraw "Locked by Timer" status. Then turn the key OFF for 10seconds. Next register transponder and go to "Verification of Vehicle Repair" procedure.
	▶ Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, damage on the PCM/ECM or SMARTRA. And this DTC has not erased in previous repair. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
