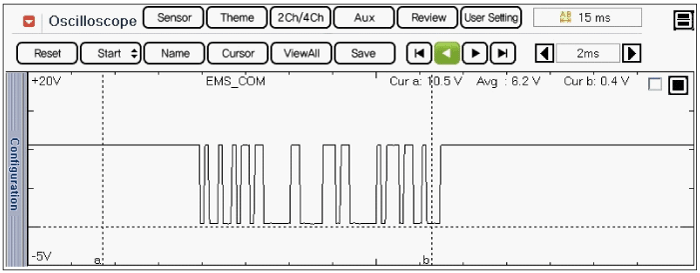

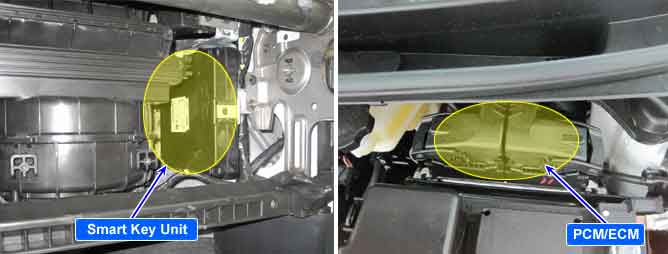

SMK unit communicates with ECM/PCM through the serial communication line. If PCM/ECM requests authentication from SMK unit after IG ON, SMK unit check authentication with transponder then, sends this signal to ECM/PCM whether authentication is O.K or not.
This DTC code is to determine proper communication of PCM/ECM and SMK Unit when engine is started.The DTC is set If there is problem with data sent from PCM/ECM to SMK unit such as check sum error, Data Frame error, ID Unknown error, Data length error and Time out error.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Checking Data stauts receiving from PCM/ECM | 1. Poor connection 2. Power supply circuit in Smartkey Unit 3. Signal noise in PCM/ECM data communication line 4. Smartkey Unit(SMK IMMO Unit) 5. PCM/ECM |
Enable Conditions |
•
Data that SMK unit received from PCM/ECM is error after IGN OFF to IGN ON | |
Threshold value |
•
Received data error from PCM/ECM | |
Diagnostic Time |
•
PCM/ECM detects data errors for 5 times | |
Diagnostic Time |
•
Immediately after receiving normal data |
