1.
Remove the glass (A) by lifting it up.
caution
●
Do not damage the roof panel.
Put on glove to protect your hands.
Remove the glass (A) by lifting it up.
Do not damage the roof panel.
Install in the reverse of removal.
Remove the roof trim.
(Refer to the BD group - "Roof Trim")
Confirm the position of guide whether it is closed or not when you remove the motor.
Disconnect the motor connector (B), remove the screws and then remove the motor (A).
Install in the reverse of removal.
Make sure to initialize the motor.
Open the glass fully.
Loosen the mounting screw (C), from the frame (B), and then remove the deflector (A).
Install in the reverse of removal.
Remove the follows parts.
Interior trim
(Refer to the BD group - "Interior Trim")
Roof trim
(Refer to the BD group - "Roof Trim")
Sunroof glass.

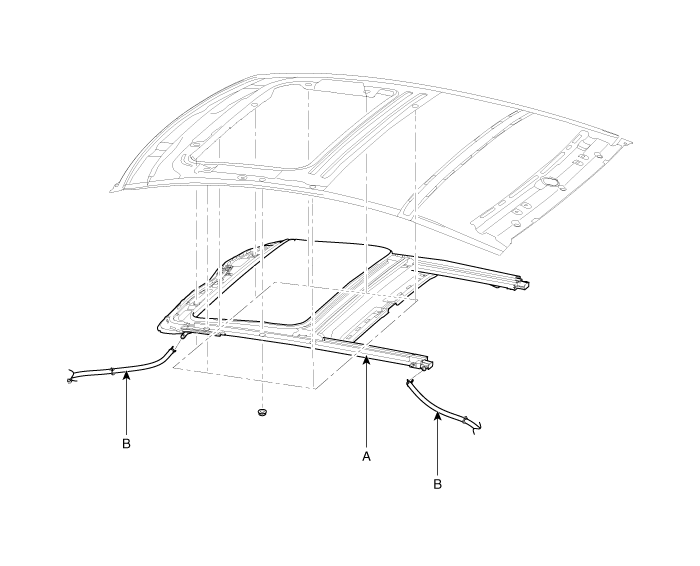

Disconnect the drain tubes (B).
After loosening the mounding nuts, remove the sunroof assembly (A).
Tightening torque:
19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft)
Take care not to scratch the interior trims and other parts.
Install in the reverse of removal.
Make sure to initialize the motor.
Remove the sunroof assembly.

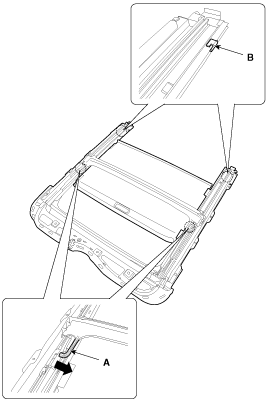

Remove the drip link (A) and sunshade stopper (B).
Remove the drip rail (A) from the sunroof assembly (B).
Install in the reverse of removal.
Remove the sunroof assembly.
Remove a mechanism assembly (A) after lowering a guide thoroughly by pushing a slide to rear.
Remove the guide (A) and slide (B).
Install in the reverse of removal.
Make sure to align the slide with the center of “(A)” and “(B)”
Make sure to initialize the motor.
