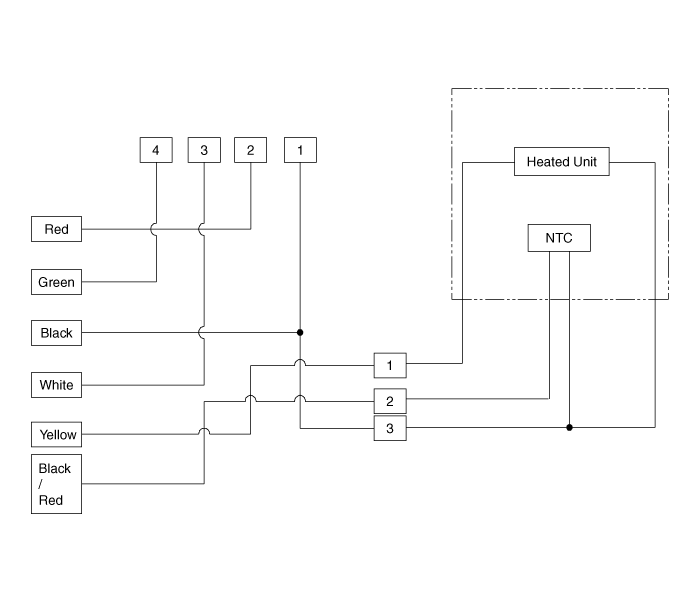

System Circuit Diagram

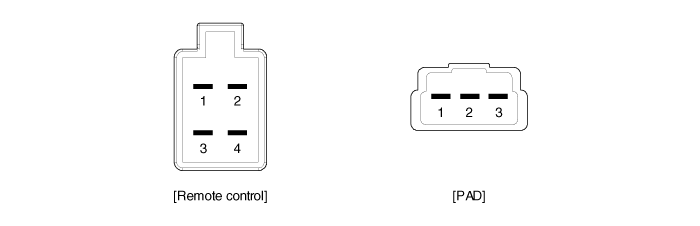

Terminal Function

Housing	Pin	Function	Wire color
Pad	1	HEATER	Back
	2	NTC	Brown
	3	GND	Back
Remote Control	1	GND	Back
	2	BAT	Red
	3	SWITCH	White
	4	LED	Green
