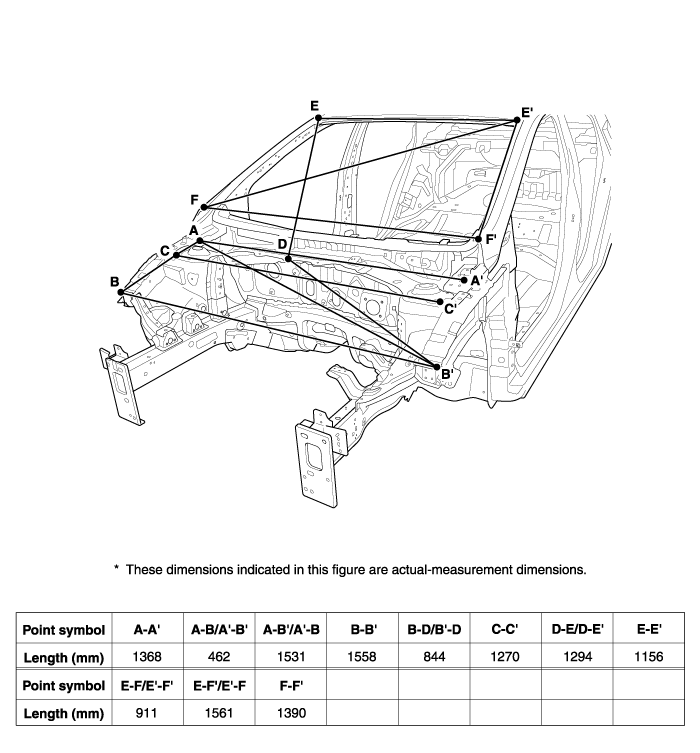

Hood hinge mounting hole (Ø10) | Fender apron upper member corner | Front shock absorber housing cover tooling hole (Ø9) |
 |  |  |
Front shock absorber housing cover tooling hole (Ø6.6) | Cowl top cover mounting hole (Ø7) | Roof panel front corner |
 | ||
Front pillar outer corner |
| |  |

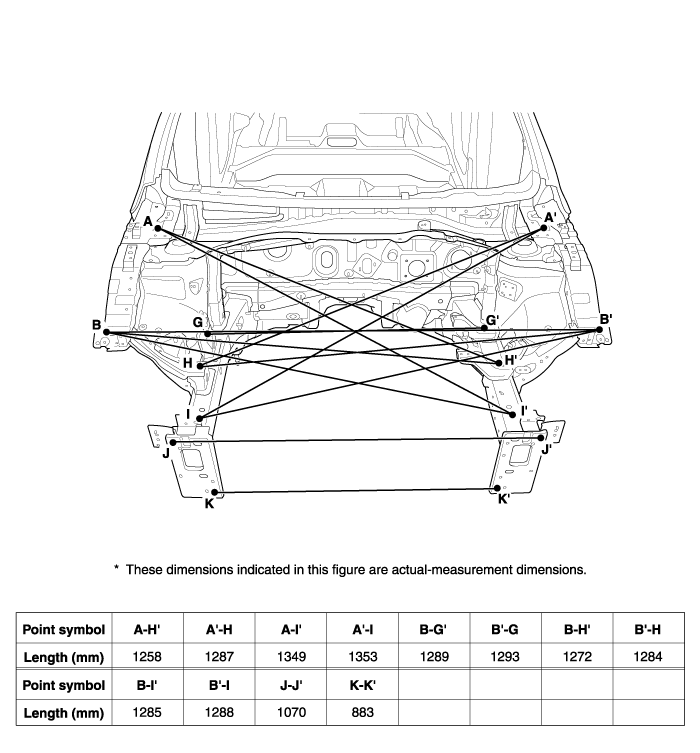

Hood hinge mounting hole (Ø10) | Fender apron upper member corner | Engine mounting bracket hole (Ø12) |
 |  |  |
Transaxle mounting hole (Ø12) | Engine mounting bracket hole (Ø15) | Transaxle mounting hole (Ø13) |
 |  |  |
Front side member tooling hole (Ø9) | Front side member tooling hole (Ø6.6) | Front end module mounting hole (Ø11.5) |
 | ||
Front end module mounting hole (Ø11.5) |
| | |

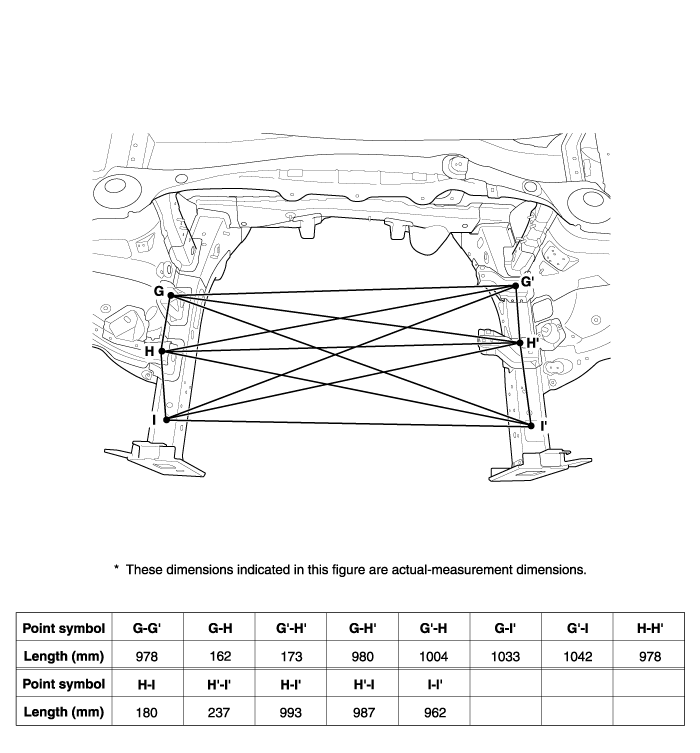

Engine mounting bracket hole (Ø12) | Transaxle mounting hole (Ø12) | Engine mounting bracket hole (Ø15) |
| | |
Transaxle mounting hole (Ø13) | Front side member tooling hole (Ø9) | Front side member tooling hole (Ø6.6) |
