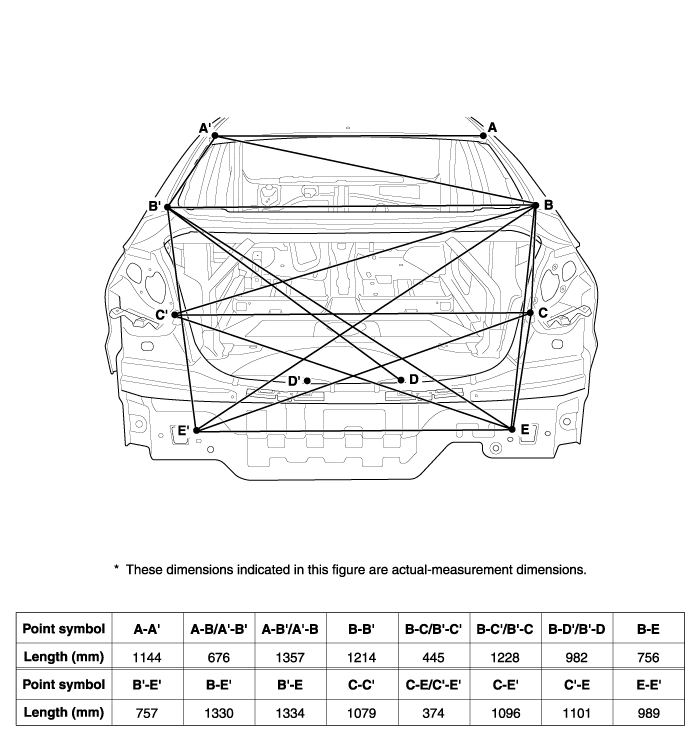

Roof panel rear corner
Side outer panel rear corner
Rear bumper mounting hole (8.5X8.5)
Rear transverse trim mounting hole
(Ø8.5)
Rear bumper mounting hole (10X14)
Rear bumper mounting hole (Ø10)
| | |
Roof panel rear corner | Side outer panel rear corner | Rear bumper mounting hole (8.5X8.5) |
| | |
Rear transverse trim mounting hole (Ø8.5) | Rear bumper mounting hole (10X14) | Rear bumper mounting hole (Ø10) |
