Components

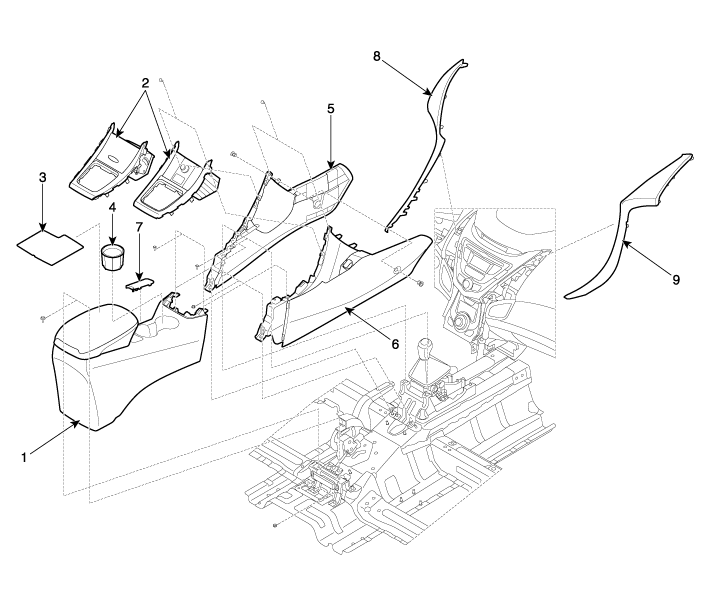

[M/T]

1. Floor console assembly

2. Console upper cover

3. Console tray mat

4. Ash tray

5. Console side cover [LH]

6. Console side cover [RH]

7. Parking brake cover

8. Crash pad center garnish [LH]

9. Crash pad center garnish [RH]

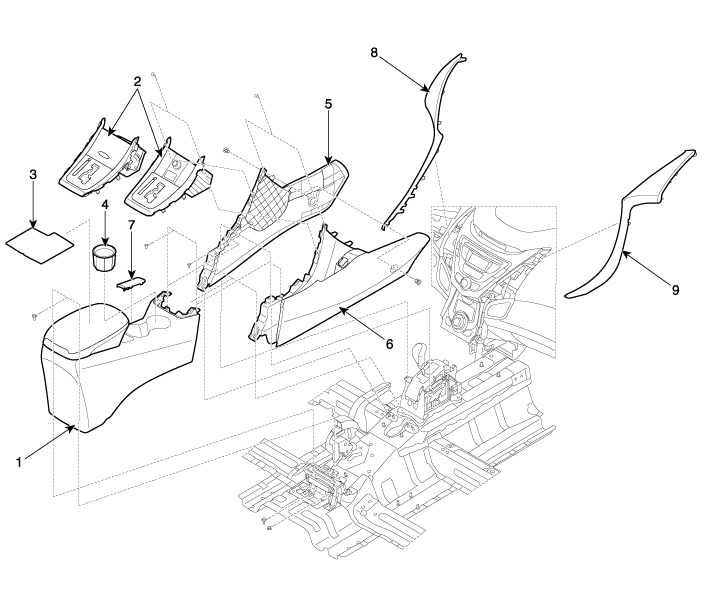

[A/T]

1. Floor console assembly

2. Console upper cover

3. Console tray mat

4. Ash tray

5. Console side cover [LH]

6. Console side cover [RH]

7. Parking brake cover

8. Crash pad center garnish [LH]

9. Crash pad center garnish [RH]
