09200-3N000

Engine support fixture (Beam)

Removal and installation of the transaxle.

Use this adapter (SST No. : 09200-4X000) with the supporter (SST No. : 09200-2S000).

※Permit operating with 09200-38001.

09200-2S000

Engine support fixture (Supporter)

Removal and installation of the transaxle.

Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000) and adapter (SST No. : 09200-4X000).

09200-4X000

Engine support fixture (Adapter)

Removal and installation of the transaxle.

Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000).

09453-2F300

Oil seal installer

Installation of transaxle case oil seal.

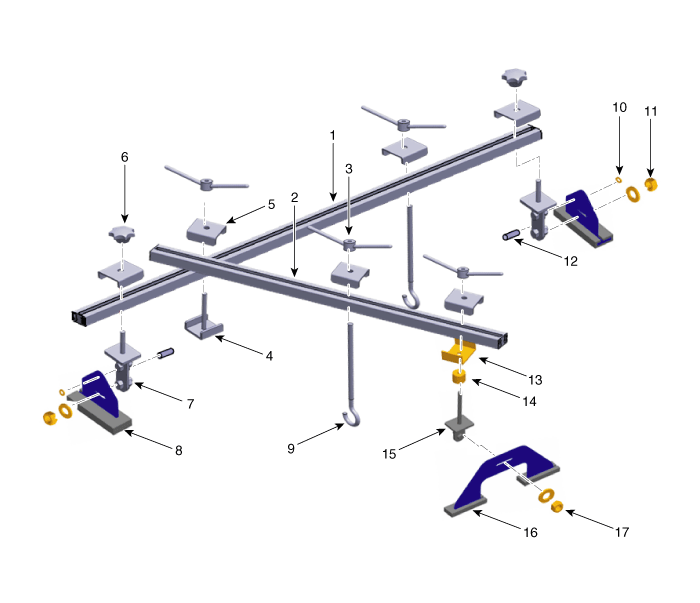

1. 09200-3N000 (Main bar)

2. 09200-3N000 (Sub bar)

3. 09200-3N000 (Handle)

4. 09200-3N000 (Stopper)

5. 09200-3N000 (Stopper)

6. 09200-3N000 (Knobe)

7. 09200-3N000 (Adapter)

8. 09200-2S000 (Supporter)

9. 09200-3N000 (Hanger)

10. 09200-3N000 (Clip)

11. 09200-3N000 (Nut)

12. 09200-3N000 (Pin)

13. 09200-2S000 (Stopper)

14. 09200-2S000 (Spacer)

15. 09200-2S000 (Adapter)

16. 09200-2S000 (Supporter)

17. 09200-2S000 (Nut)
