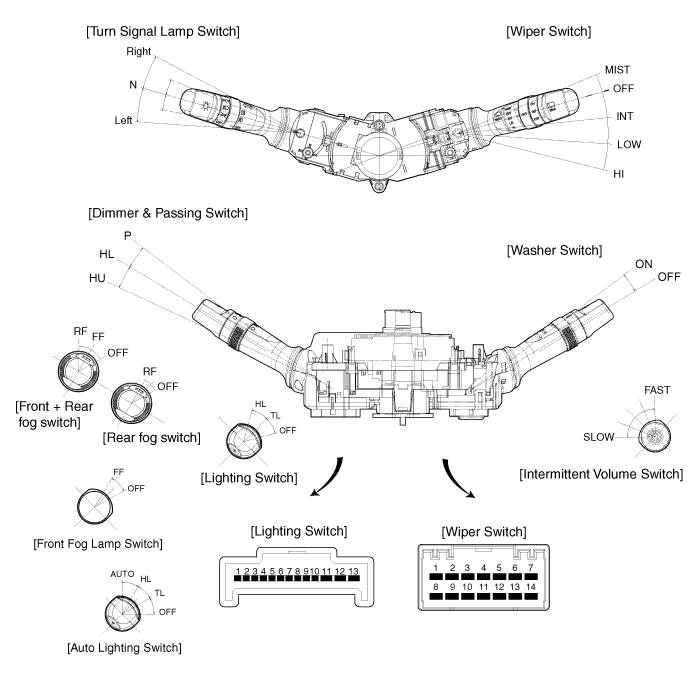

Connectorname | No | Description | Connectorname | No | Description |
Lighting (13 pin) -LH side | 1 | Lighting switch GND | Wiper & Washer (14 pin) -RH side | 1 | Mist switch |
2 | Tail lamp switch | 2 | Wiper parking | ||
3 | Auto light switch | 3 | Wiper low speed | ||
4 | Head lamp switch | 4 | - | ||
5 | Fog lamp switch base | 5 | - | ||
6 | Front fog lamp switch | 6 | - | ||
7 | Rear fog lamp switch | 7 | - | ||
8 | Head lamp low | 8 | Intermittent wiper switch | ||
9 | Head lamp high | 9 | Wiper high speed | ||
10 | Dimmer switch base | 10 | IGN2 (front washer & wiper) | ||
11 | Turn signal left | 11 | Washer switch | ||
12 | Turn signal base | 12 | INT volume base | ||
13 | Turn signal right | 13 | INT time | ||
14 | - | ||||
Connector name | No | Description | Connector name | No | Description |
Wiper & washer (14 pin) -LH side | 1 | - | Lighting (13 pin) -RH side | 1 | Lighting switch GND |
2 | - | 2 | Tail lamp switch | ||
3 | - | 3 | Auto light switch | ||
4 | - | 4 | Head lamp switch | ||
5 | Wiper low speed | 5 | Fog lamp switch base | ||
6 | Wiper parking | 6 | Front fog lamp switch | ||
7 | MIST switch | 7 | Rear fog lamp switch | ||
8 | - | 8 | Head lamp low | ||
9 | Intermittent volume base | 9 | Head lamp high | ||
10 | Intermittent time | 10 | Dimmer switch base | ||
11 | Washer switch | 11 | Turn signal left | ||
12 | IGN 2-Front washer & wiper | 12 | Turn signal base | ||
13 | Wiper high speed | 13 | Turn signal right | ||
14 | Intermittent wiper switch | ||||
