Components Location

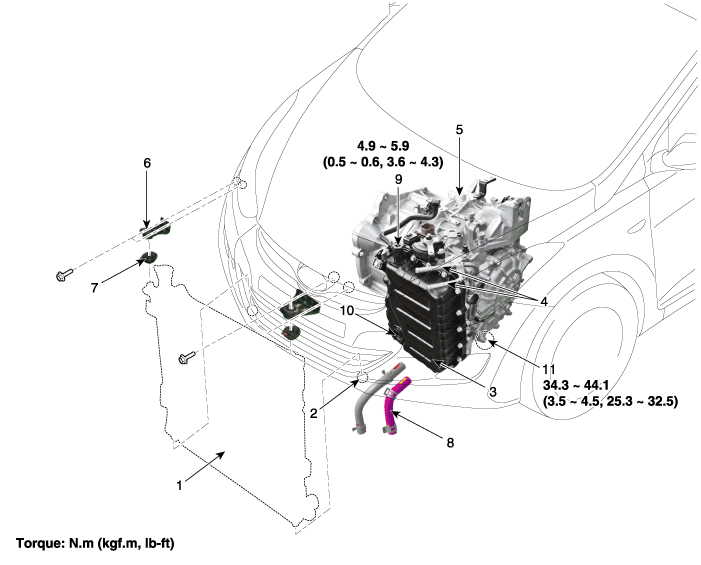

1. Radiator(Automatic transaxle oil cooler)

2. Mounting insulator

3. Valve body cover

4. Feed Tube

5. Automatic transaxle

6. Radiator(Automatic transaxle oil cooler) upper mounting bracket

7. Upper mounting insulator

8. ATF Hose

9. ATF injection hole(eyebolt)

10. Oil level plug

11. Oil drain plug

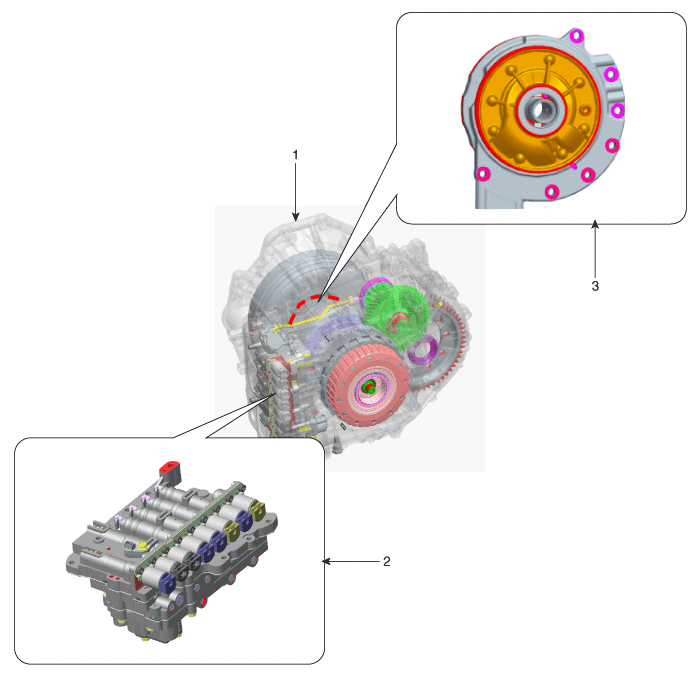

1. Automatic transaxle

2. Valve body assembly

3. Oil pump assembly
