17710

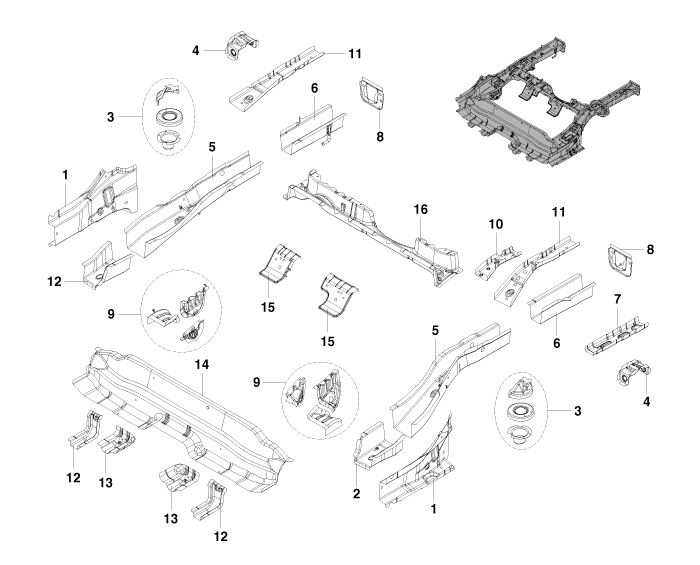

Rear Side Member (4 Door)

Components

1	Side sill inner rear panel	9	Rear side member front lower reinforcement
2	Rear floor side member front extension	10	Rear floor side member reinforcement
3	Spring sheet	11	Center floor side member rear extension
4	Rear side member center upper reinforcement	12	Center floor side inner rear extension
5	Rear floor side member	13	Rear floor front cross member
6	Rear floor side rear member	14	Rear seat mounting side reinforcement
7	Rear bumper mounting reinforcement	15	Rear floor center cross member
8	Trailing arm mounting bracket

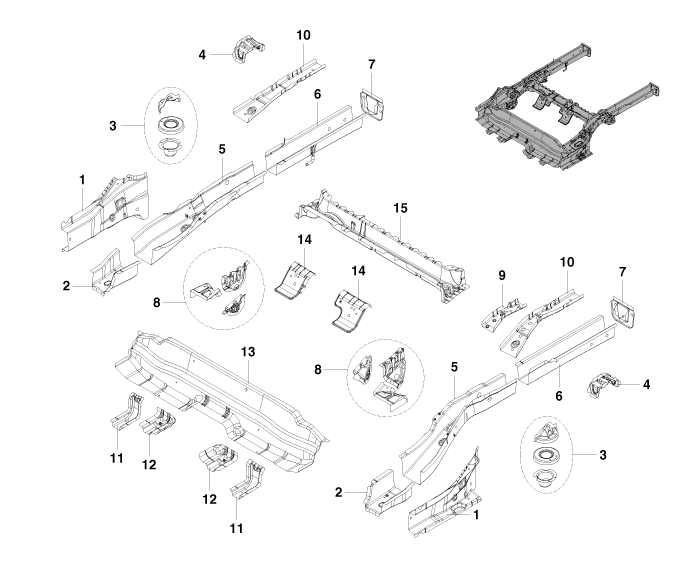

Rear Side Member (5 Door)

Components

1	Side sill inner rear panel	9	Trailing arm mounting bracket
2	Rear floor side member front extension	10	Rear side member front lower reinforcement
3	Spring sheet	11	Rear floor side member reinforcement
4	Rear side member center upper reinforcement	12	Center floor side member rear extension
5	Rear floor side member	13	Center floor side inner rear extension
6	Rear floor side rear member	14	Rear floor front cross member
7	Rear floor side member rear reinforcement	15	Rear seat mounting side reinforcement
8	Rear bumper mounting reinforcement	16	Rear floor center cross member
