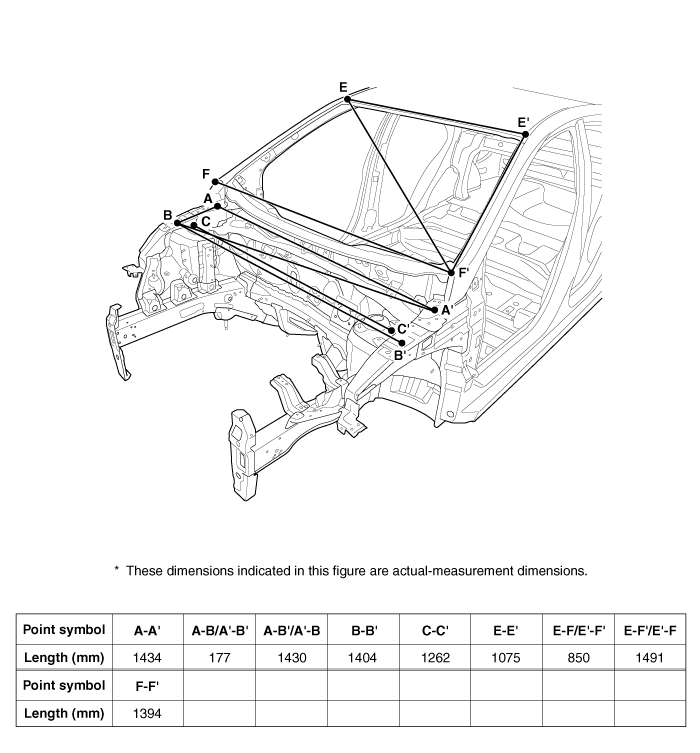

Front Body A ( 4Door )


Hood hinge mounting hole (Ø10)	Fender apron upper member tooling hole (Ø6.6)	Front shock absorber cover panel tooling hole (Ø10)

Roof panel front corner	Front pillar outer panel corner

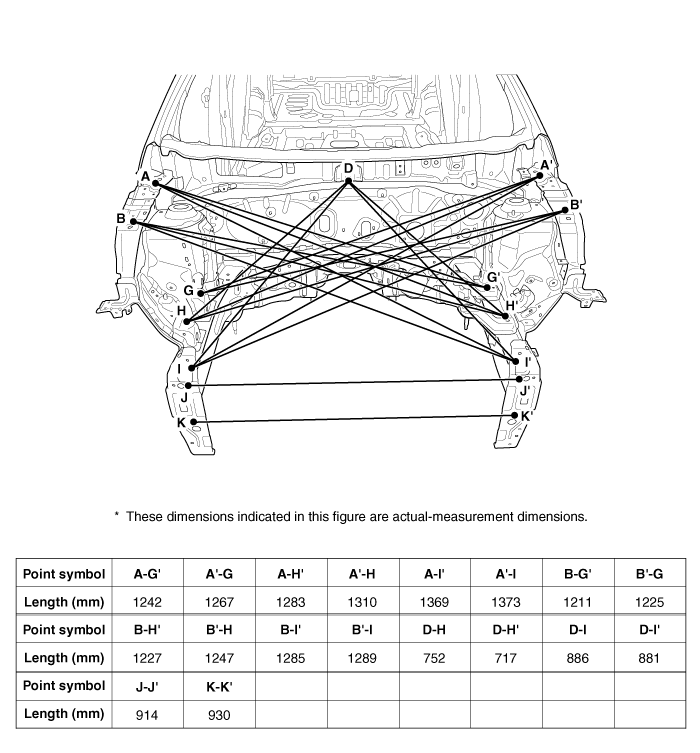

Front Body B ( 4Door )


Hood hinge mounting hole (Ø10)	Fender apron upper member tooling hole (Ø6.6)	Cowl under cover mounting side bracket hole (Ø6.6)

Engine mounting bracket hole (Ø12)	Battery tray leg bracket hole (Ø12)	Engine mounting bracket hole (Ø12)

Battery tray leg bracket tooling hole (Ø15)	Front side member tooling hole (Ø9)	Front side member tooling hole (Ø6.6)

Front end module mounting hole (J/J' : Ø10/Ø9)	Front end module mounting hole (K/K' : Ø10/Ø9)

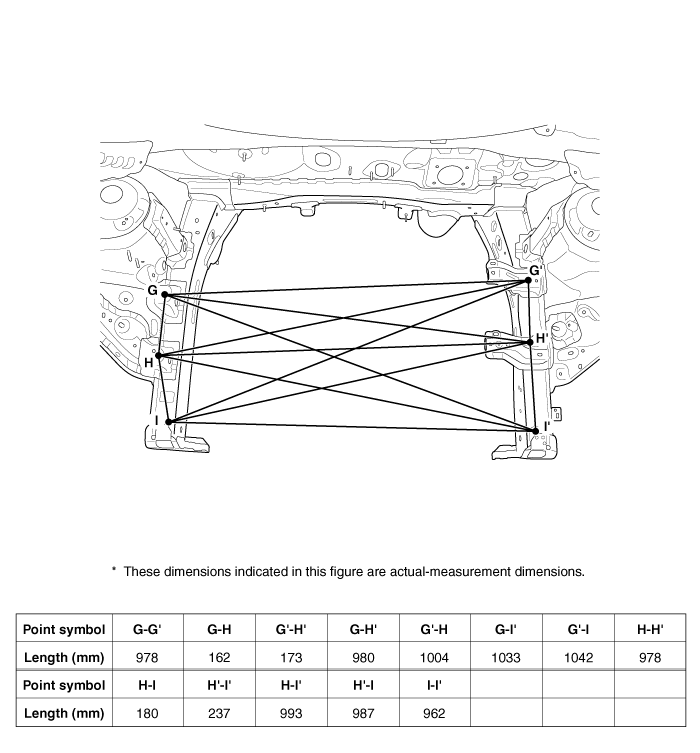

Front Body C ( 4Door )


Engine mounting bracket hole (Ø12)	Battery tray leg bracket tooling hole (Ø12)	Engine mounting bracket hole (Ø12)

Battery tray leg bracket tooling hole (Ø15)	Front side member tooling hole (Ø9)	Front side member tooling hole (Ø6.6)

Front Body D ( 5Door )


Hood hinge mounting hole (Ø10)	Fender apron upper member tooling hole (Ø6.6)	Front shock absorber cover panel tooling hole (Ø10)

Roof panel front corner	Front pillar outer panel corner

Front Body E ( 5Door )


Hood hinge mounting hole (Ø10)	Fender apron upper member tooling hole (Ø6.6)	Cowl under cover mounting side bracket hole (Ø8)

Engine mounting bracket hole (Ø11)	Battery tray leg bracket hole (Ø12)	Engine mounting bracket hole (Ø11)

Battery tray leg bracket tooling hole (Ø15)	Front side member tooling hole (Ø9)	Front side member tooling hole (Ø6.6)

Front end module mounting hole (J/J' : Ø10/Ø9)	Front end module mounting hole (K/K' : Ø10/Ø9)

Front Body F ( 5Door )


Engine mounting bracket hole (Ø11)	Battery tray leg bracket tooling hole (Ø12)	Engine mounting bracket hole (Ø11)

Battery tray leg bracket tooling hole (Ø15)	Front side member tooling hole (Ø9)	Front side member tooling hole (Ø6.6)
